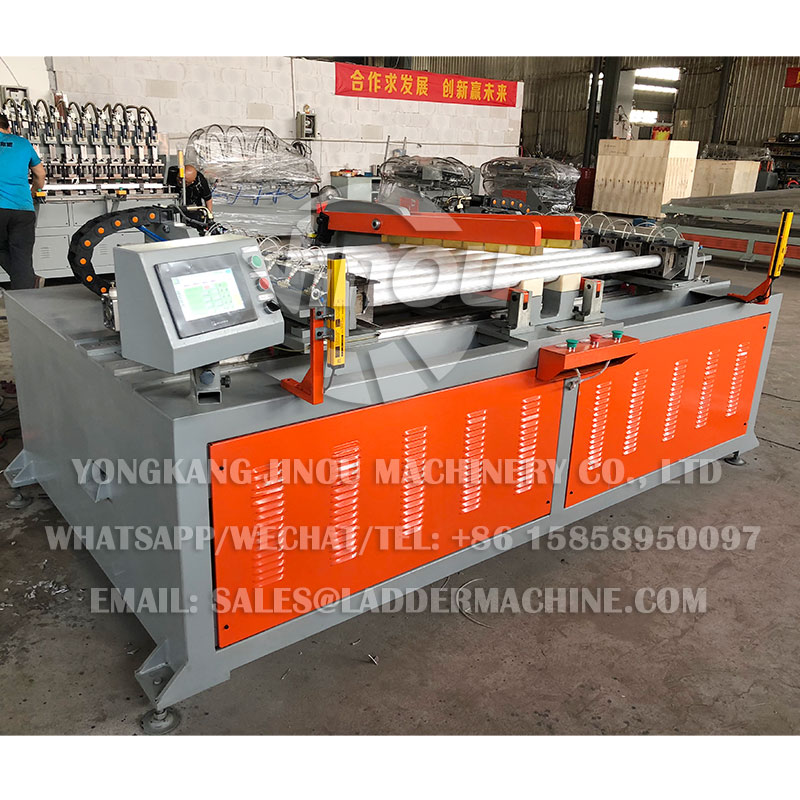

This is an fully automatic arc punching machine for the aluminium scaffolding,
Every time it can punch 7 pcs of the aluminium pipes.
It’s simple to handle the machine , no need to change the molds,

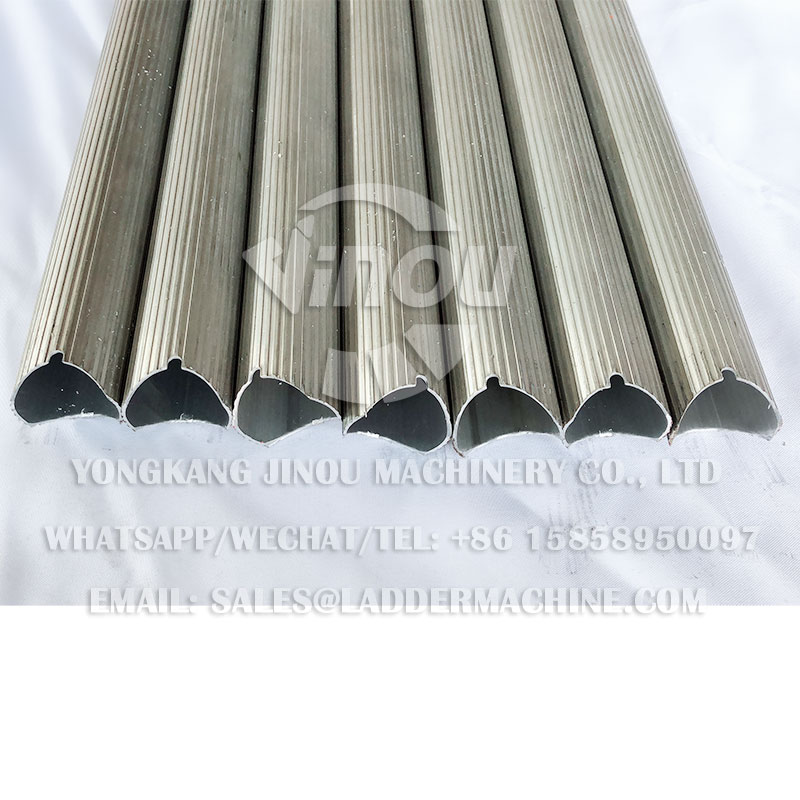

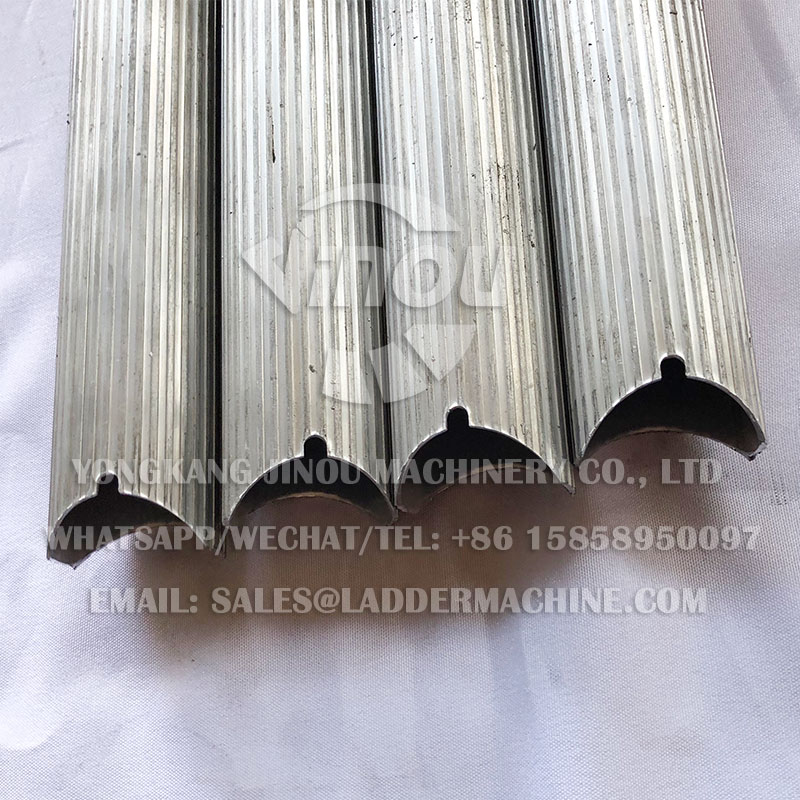

And it can punching the arc and the small air holes at the same time .
And profiles lengths are varies from 600mm to 2000mm .
Easy to adjust the size .
So with that machine you will greatly increase the production efficiency.

Work Station:            7 Work Station
Feeding :                   Manual feeding the materials
Control:                     PLC+Screen
System Pressure：          14Mpa
Tons：                     2.5T
Motor power：              7.5Kw
Voltage Input：            380V/50HZ
Power Output:                24V
Punching Size:              600-2000mm
Antiwear hydraulic oil：      Summer（46#）Winter（32#）
Dimensions :               3080×2050×1250mm
Net Weight :                1400KGS
