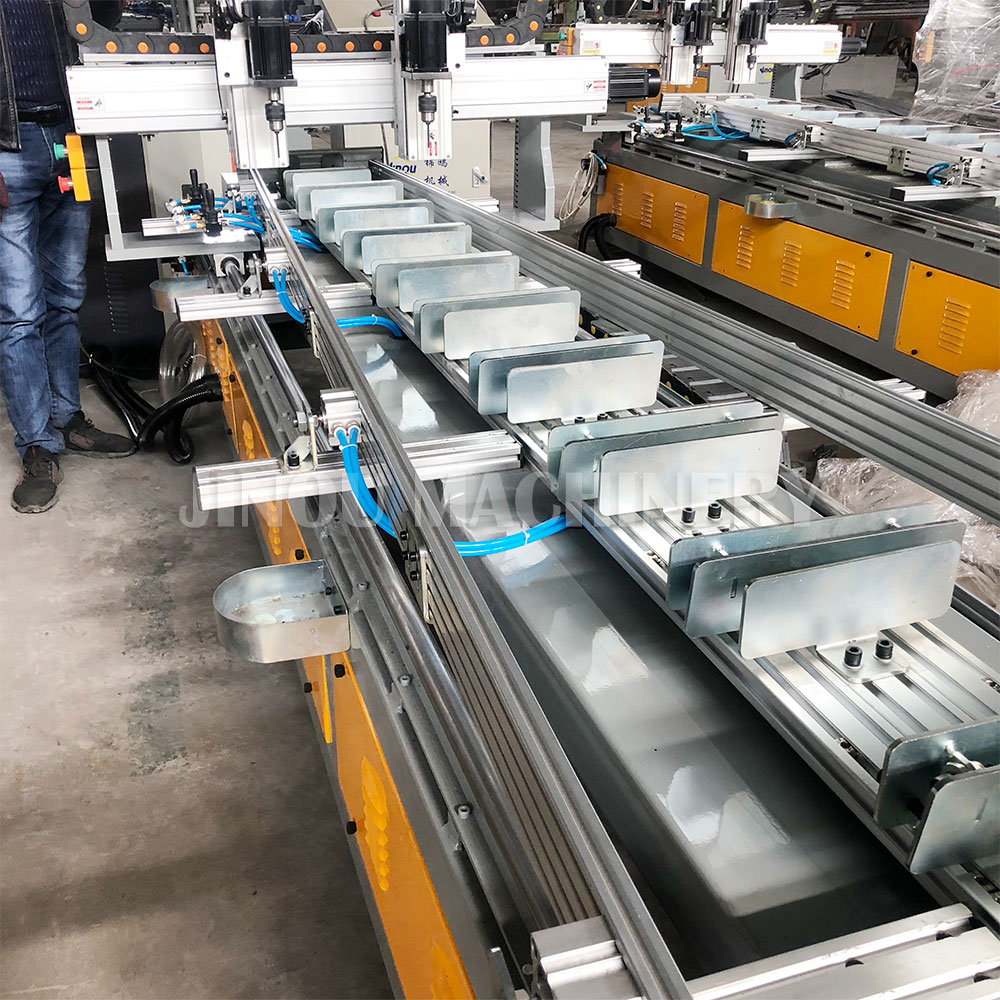

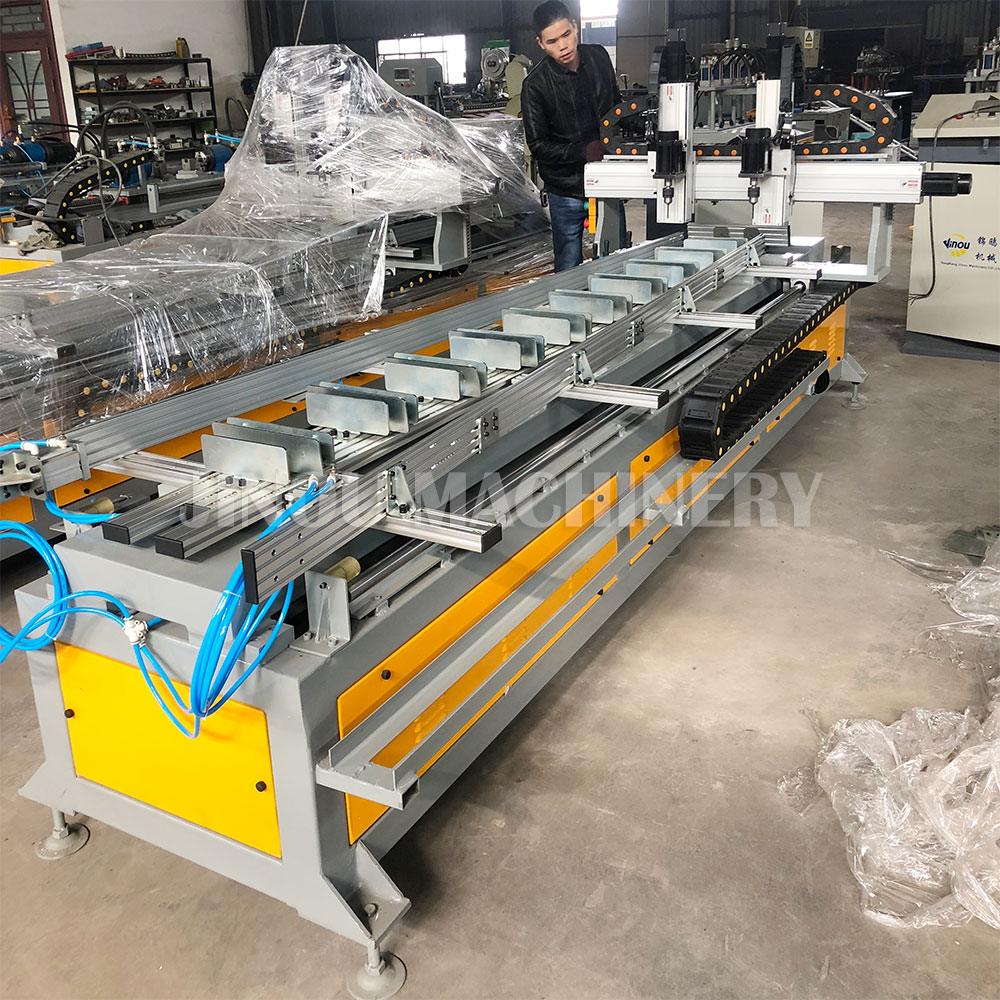

This is a CNC Drilling Machine for the A type ladder and Stepladder.

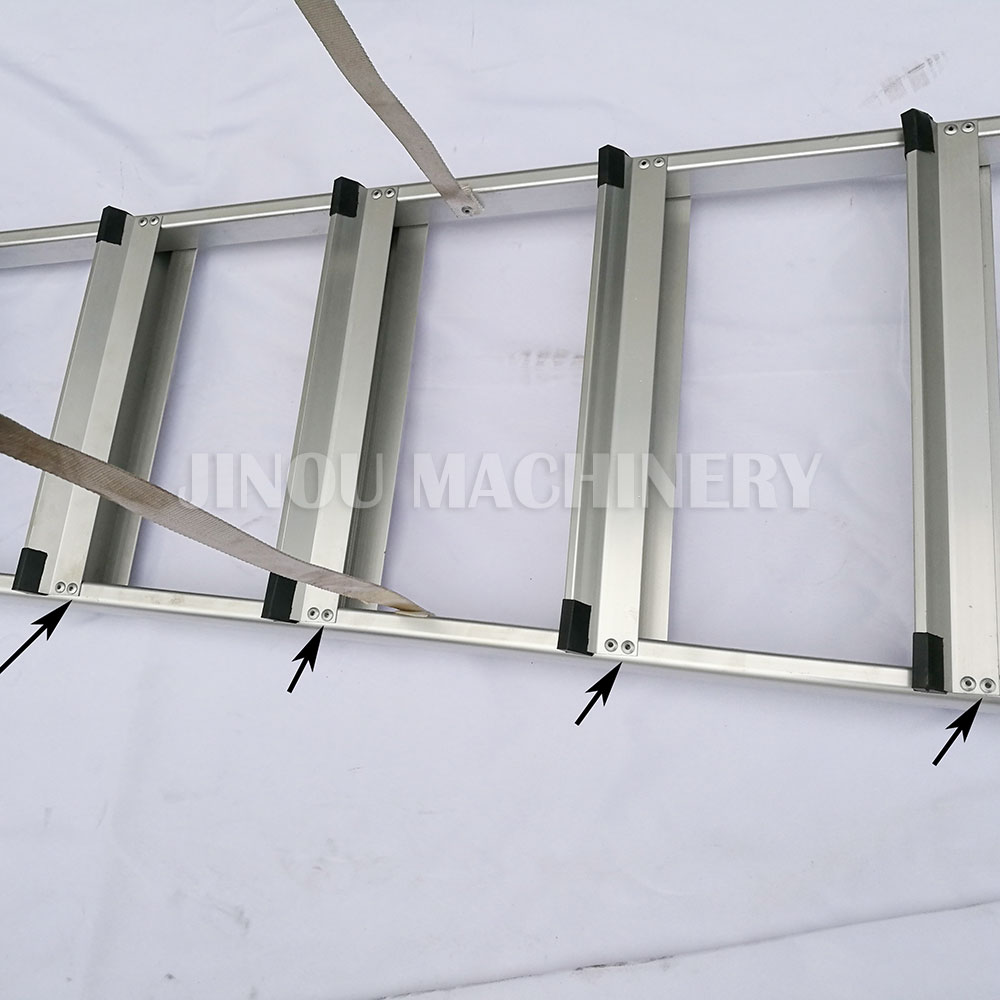

Functions：Drilling the left and right side holes at the same time.
Length,Width, Height both can be adjustable.
Feeding Method: Manual Feeding material.
Easy to operate the machine .Safety and High efficiency.

TECHNICLA DATA
Model Number: JO-CNC400700
Voltage: 220V/50HZ
Motor: 3.5KW
Air pressure: 0.7Mpa
Drilling Rotation Speed: 2000r/min
XYZ Axis Geometric positioning accuracy: ≤0.05mm/1000mm
XYZ Axis Repeat Positioning accuracy: ≤±0.02mm
Noisy: ＜60Db
Machine Weight: 1000kgs
Measurement(mm): 4600×1120×1400
