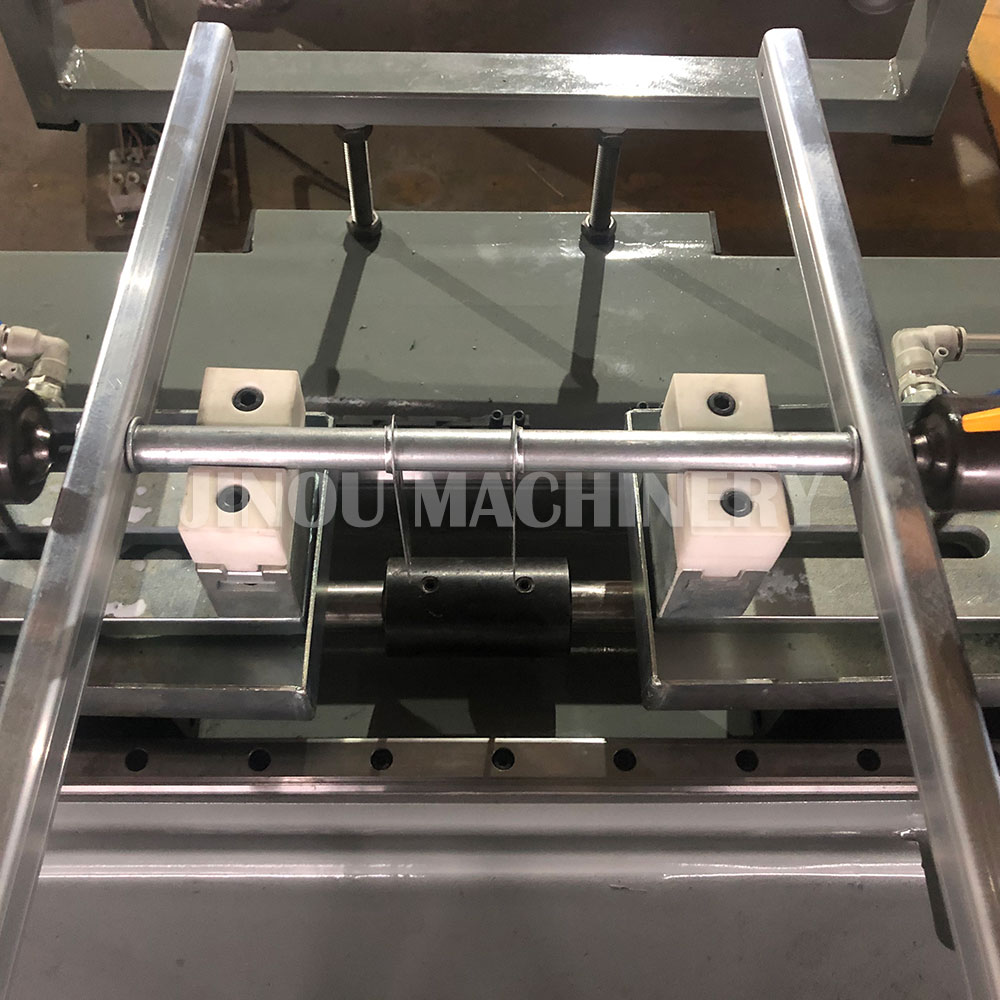

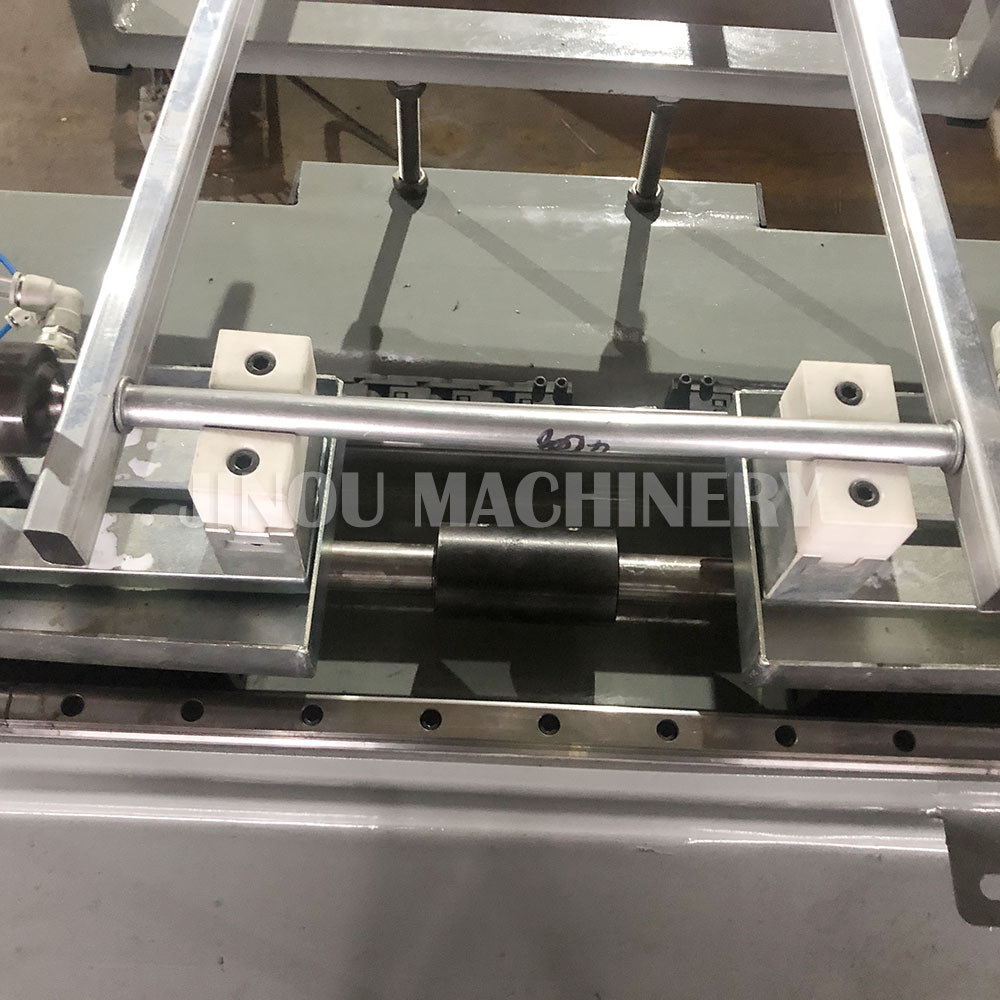

This is an Automatic CNC Riveting Machine for the Inside of the Rear Rail of a stepladder.
Can be suitable for Aluminnium and Steel Tubes.
Different Lengths can be processing by adjust the machine system.
Very high automatic and high efficiency.

Technical data:

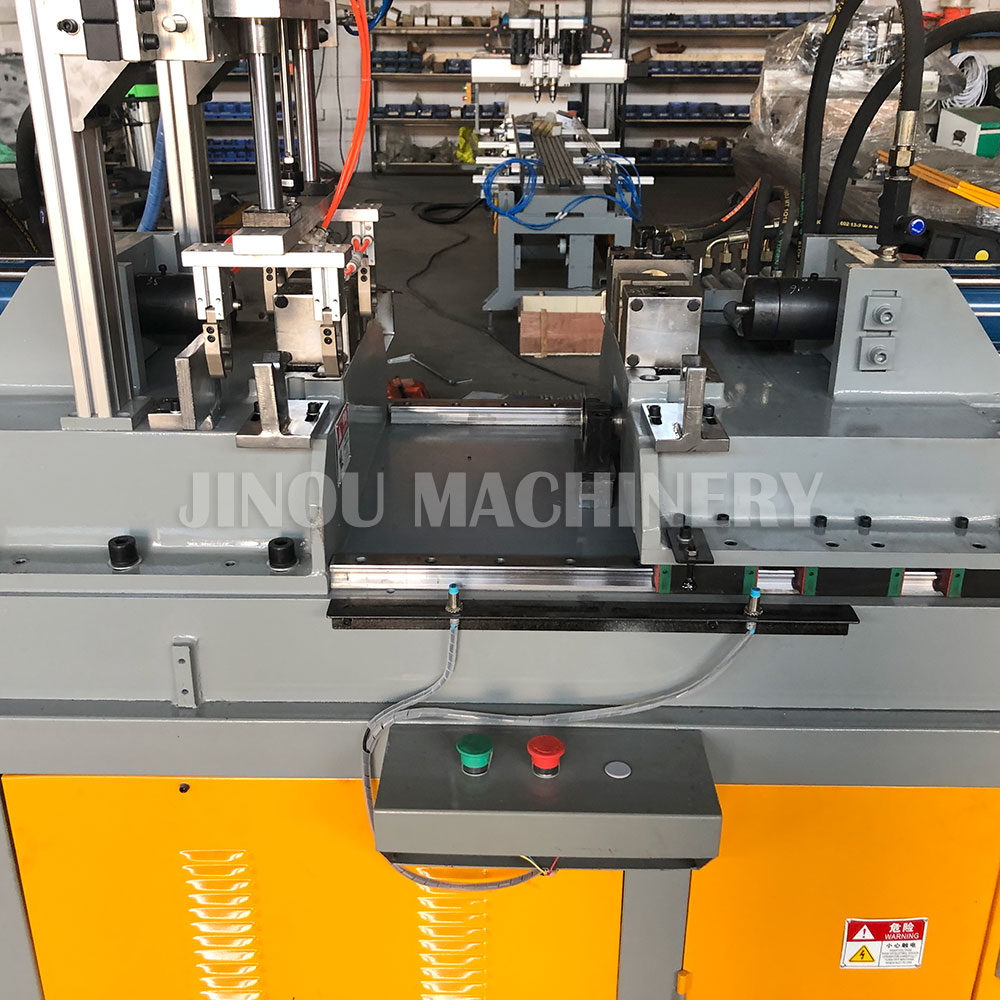

CNC Dual Head tube squeezing machine

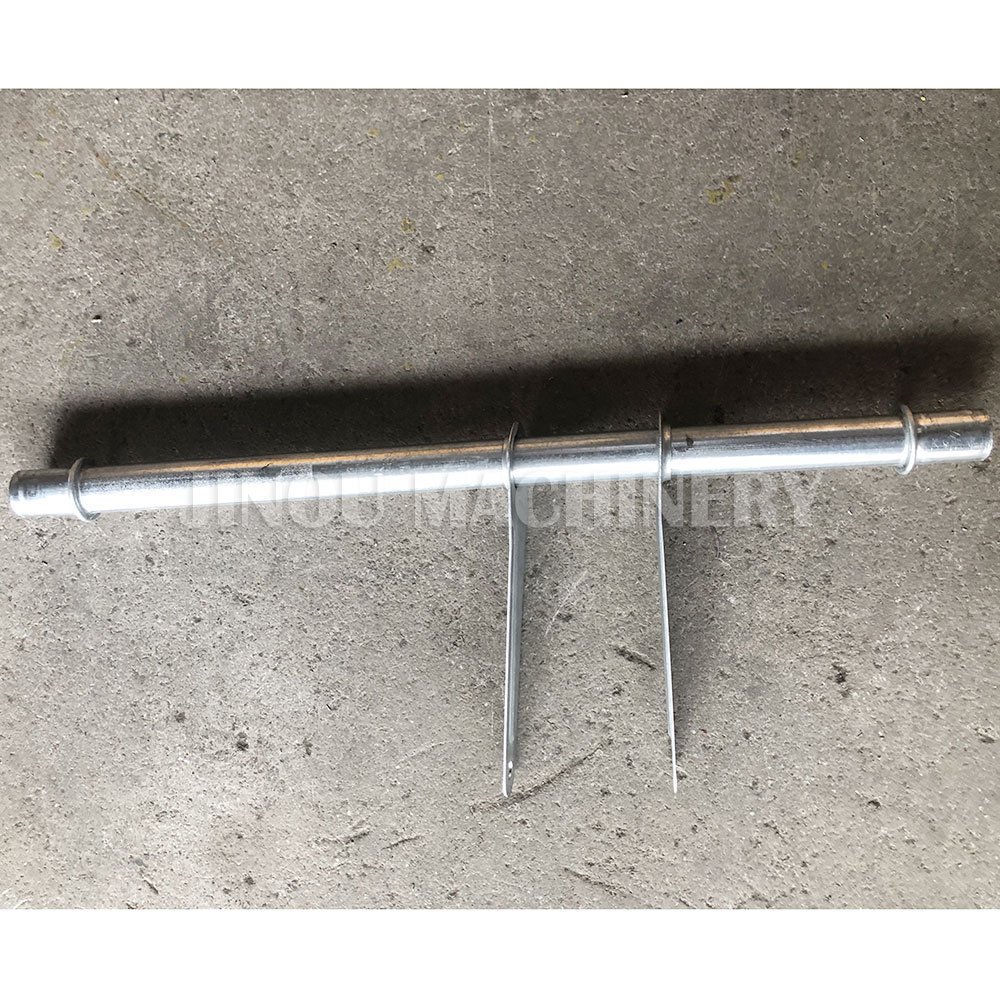

Usage: for tube inner wrinkes on both sides

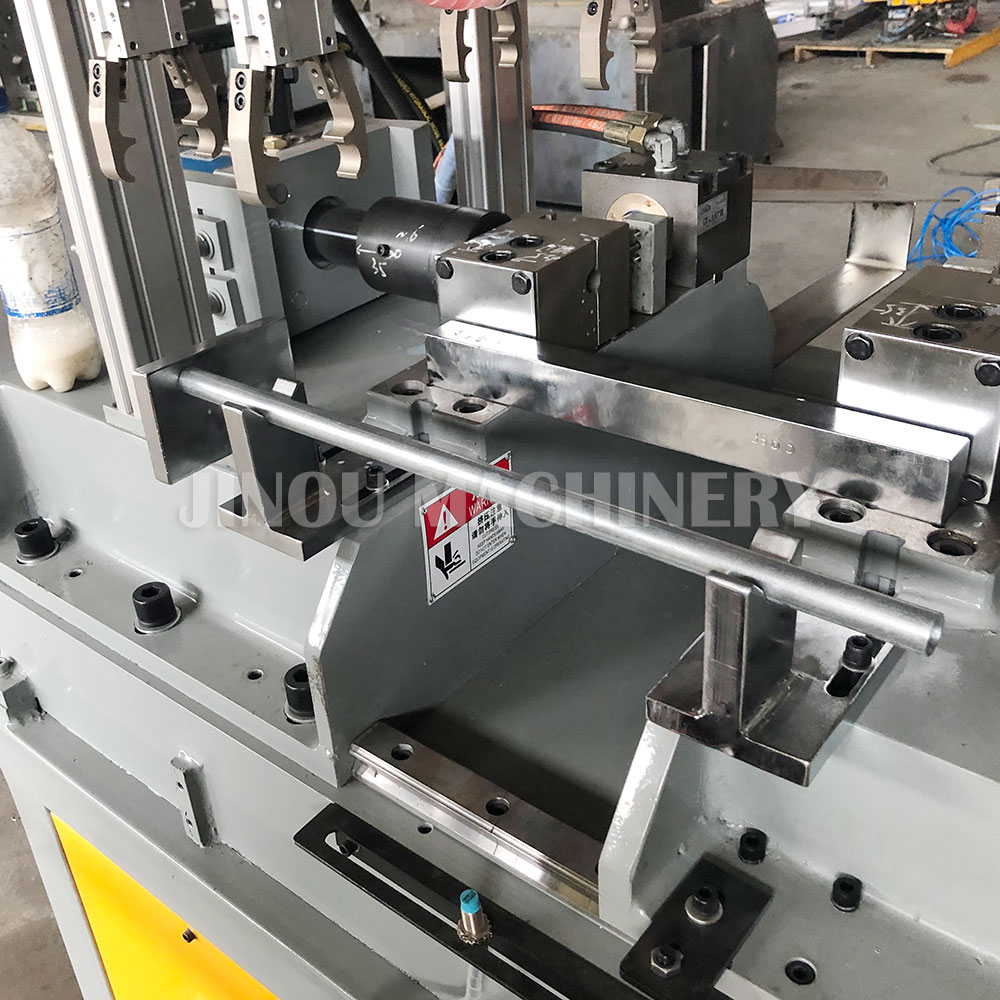

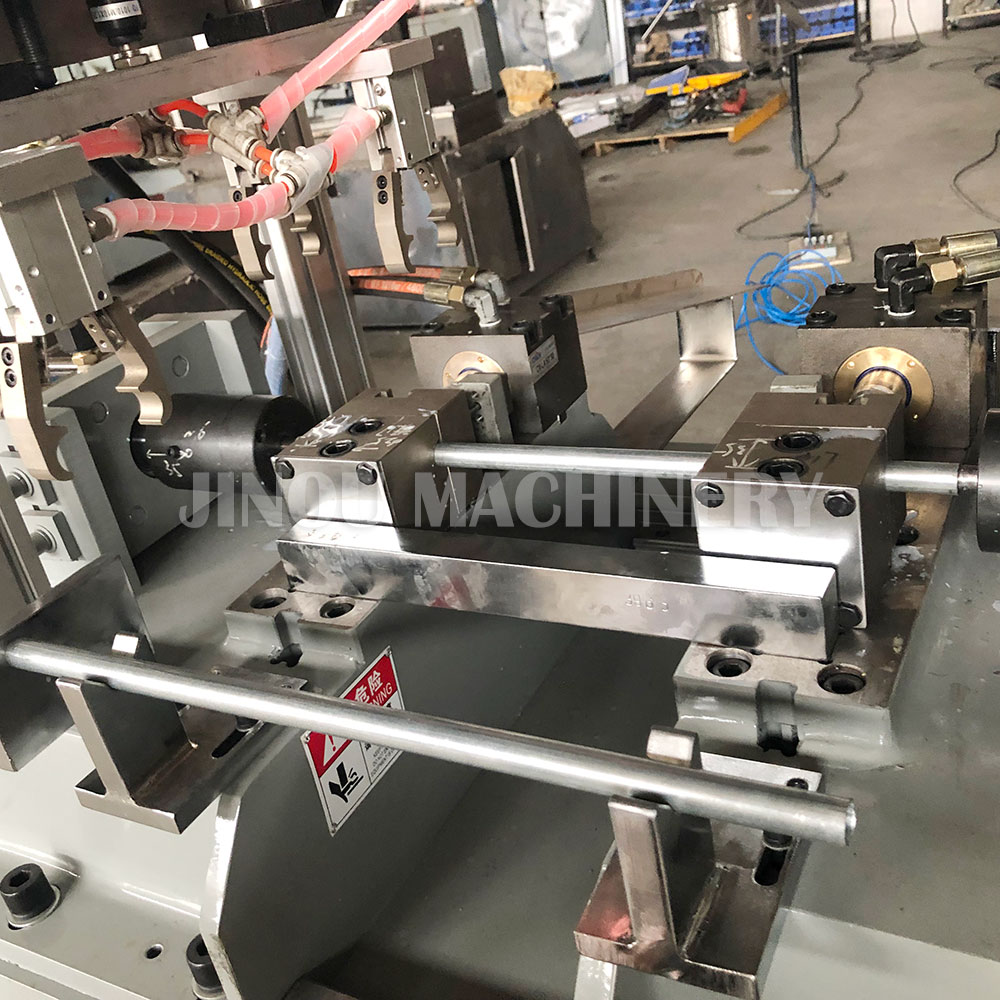

With a clamp device to take the tubes for processing.
Adjust tube length method: by PLC software
Mold:18mm Round tube.
Control System: PLC+Screen
Hydraulic Pressure: 10 Mpa
Motor Power: 7.5 kw
Servo Motor Power: 1.5 Kw
Voltage: 380V/50HZ/3Phase/4Wire
Tube Length Adjustable: 300-700 mm
Maximum squeeze stroke: 80 mm
Machine Size: 255x130x170 cm
Machine Weight: 1200 kgs
HS CODE: 8462919000
