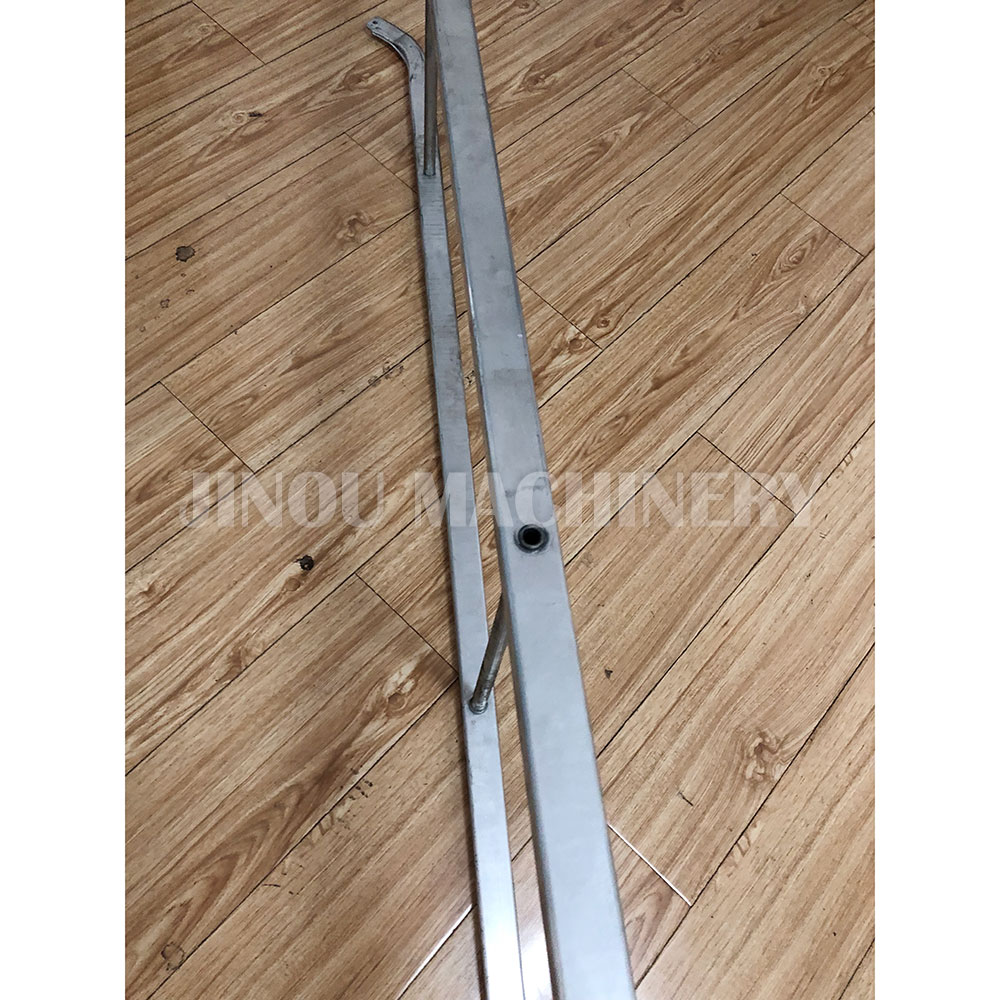

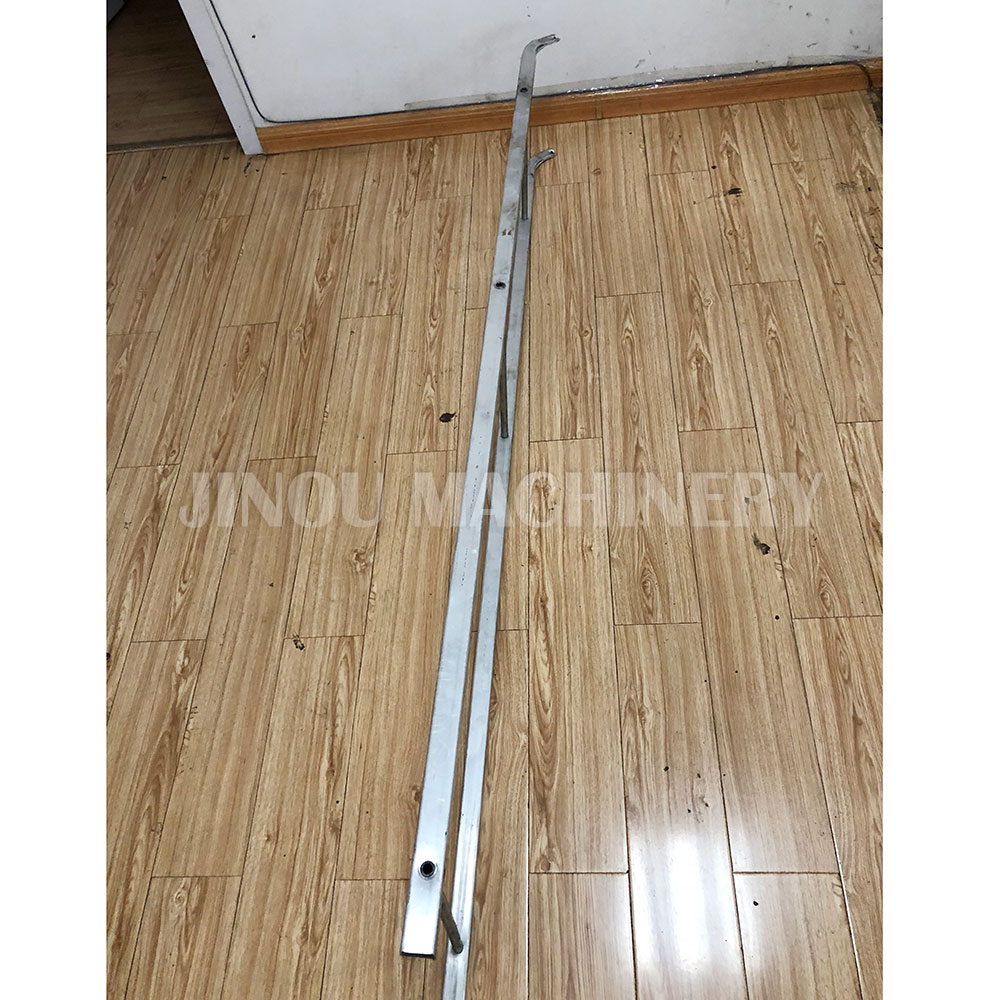

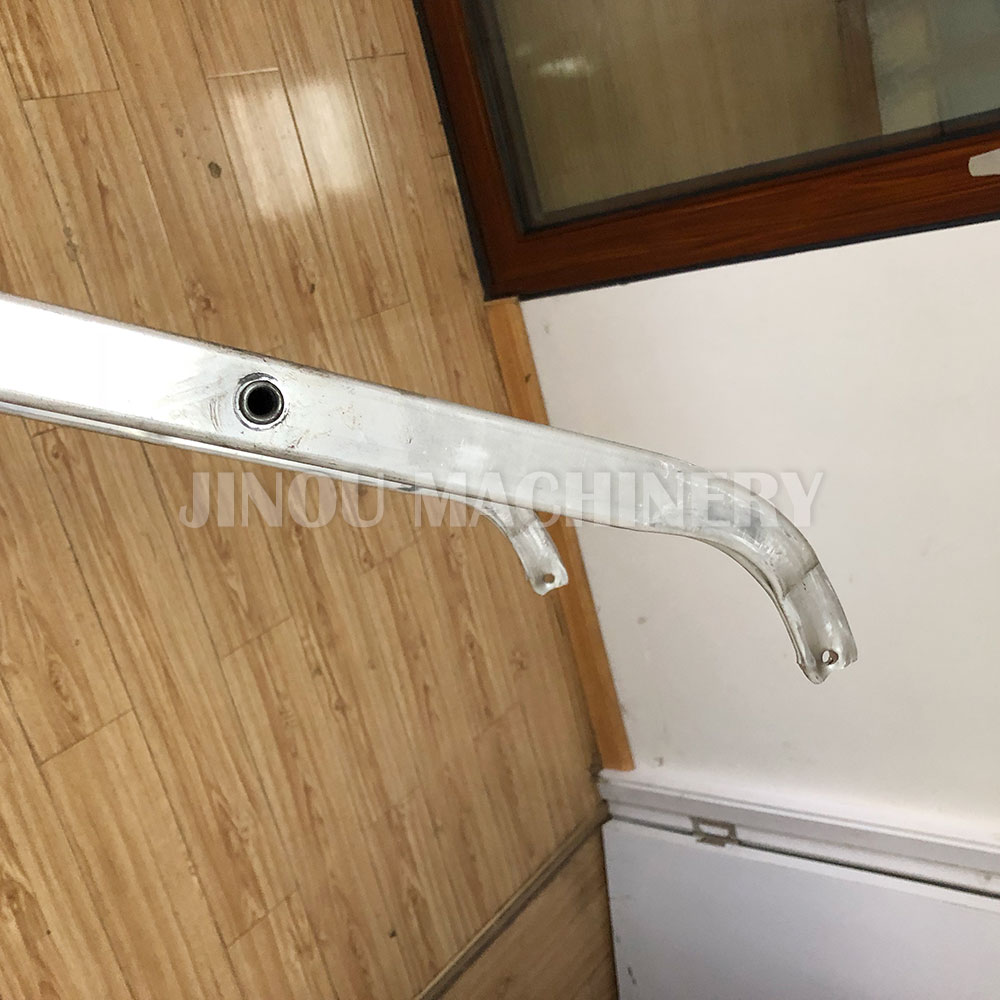

This is a Tube Riveting Machine for the Stepladder Rear Rail, Can customized fron one pair to four pair. Different shape can be done. And suitable for both Aluminium and Steel material.

Technical data:
Six head ladder riveting machine
Machine type: Hydraulic
Efficency: 8s every work cycle
Control systme: Relay Control
Power: 4.4 KW
Power Input: 380V/50HZ
Rear Rail Support bar distance adjustable
ladder width adjustment size: 350-800 mm
Air  Input: No need
G.W: 800 KGS
Measures: 1900x640x1290 mm
HS CODE: 8463900090

The machine can be adjustable ,and suitable for the 3 to 8 steps ladders. Machines are stable, high efficiency. Easy to handle, and easy to download or upload the molds.
