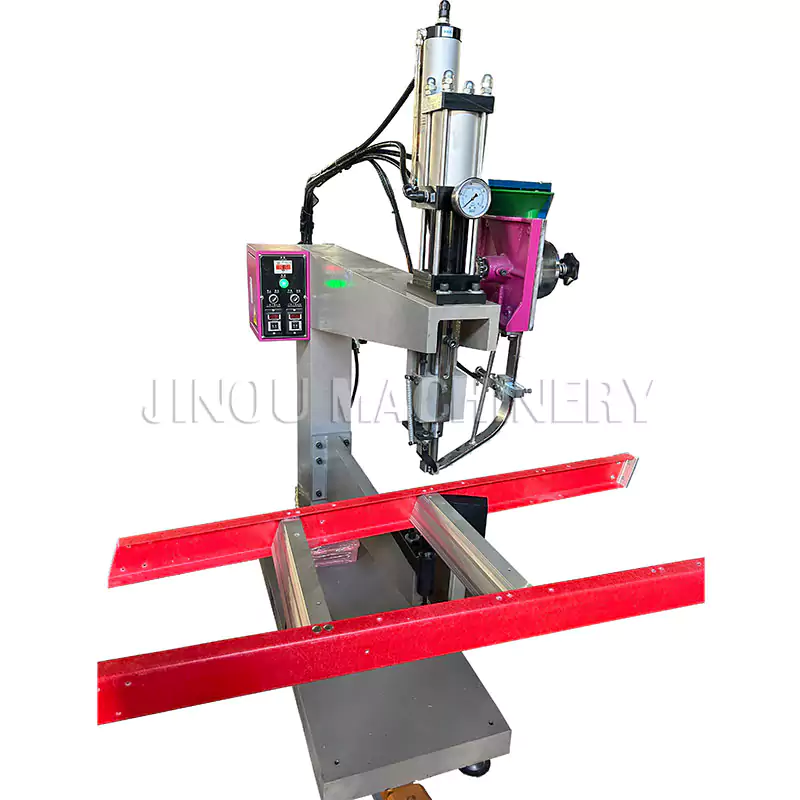

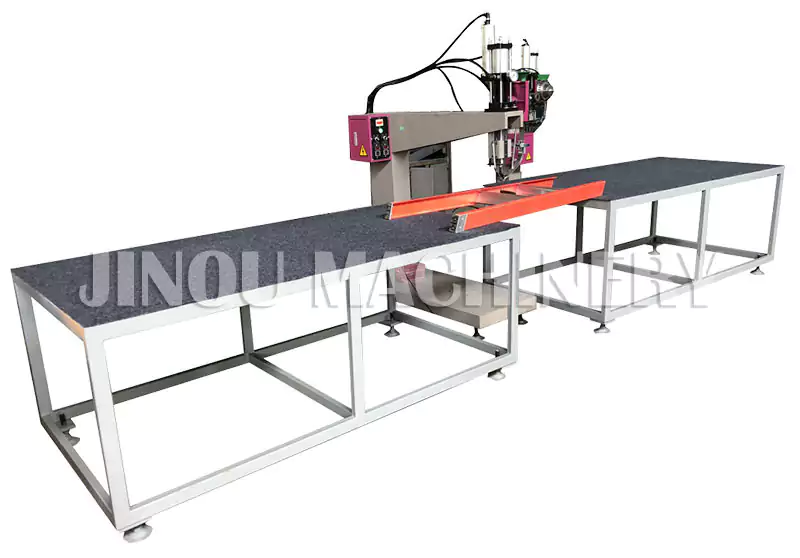

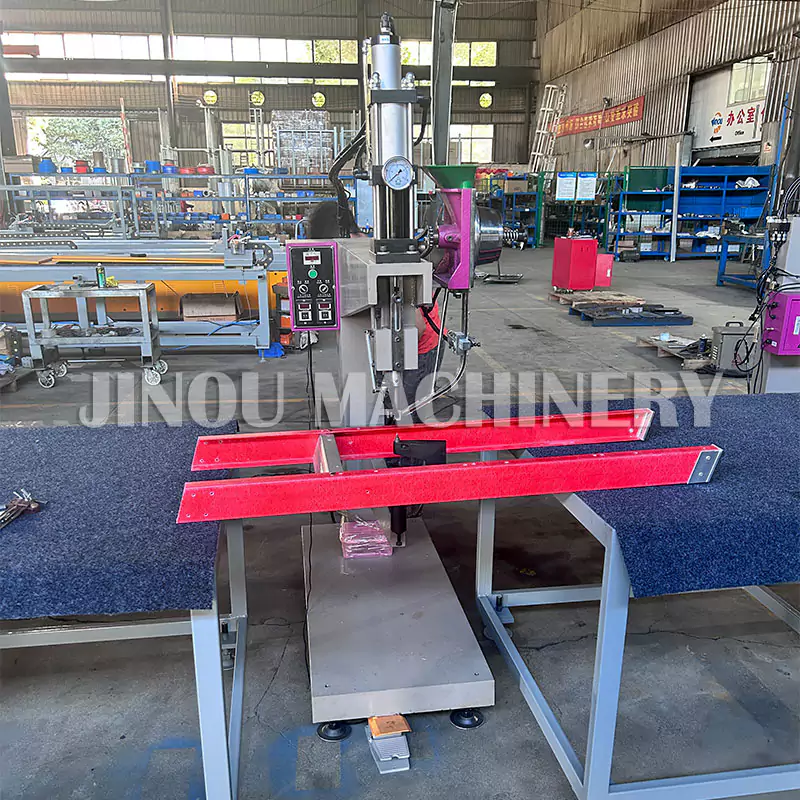

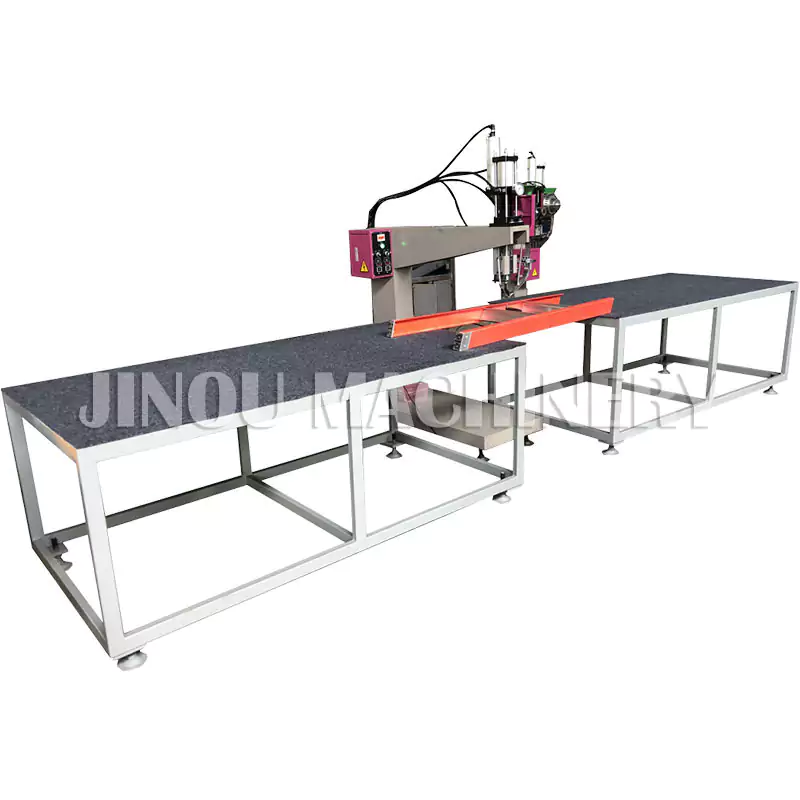

Deep Stroke Riveting Machine for the A Type Ladder
Aluminium ,FRT A Type Ladder Rivet the Steps on the Side Profiles
Rivet the Front and Rear Rails, or Rivet the Steps.
Name:Ladder Making Machine-Rivet Machine
Model No.:JOM-TY005
Max Rivet Head diameter:15mm
Maximum riveting diameter: 6 mm
Maximum riveting stroke: 100 mm
Rivet length: 8-25 mm
Equipment energy consumption: 0.75 KW
Equipment weight: 300 Kg
Dimensions: 85x60x170CM
Replace the rivet head to rivet different sizes of rivets.
HS CODE :8463900090
