CNC Punch the Stiles Holes on Rear Rail,and the Machine with Small Work Station, Can Punch the Aluminium and Punch the FRP by changing molds. Machine can make different length, Maximum can make 6 meters. Small Work Station can Punch All the Necessary Holes like Connection holes, Feet Holes.

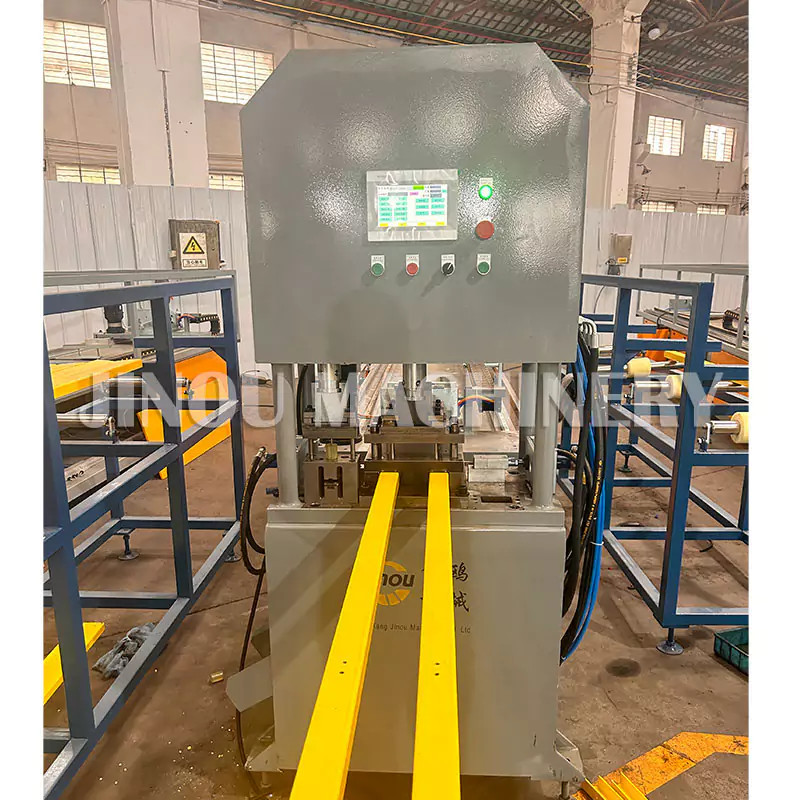

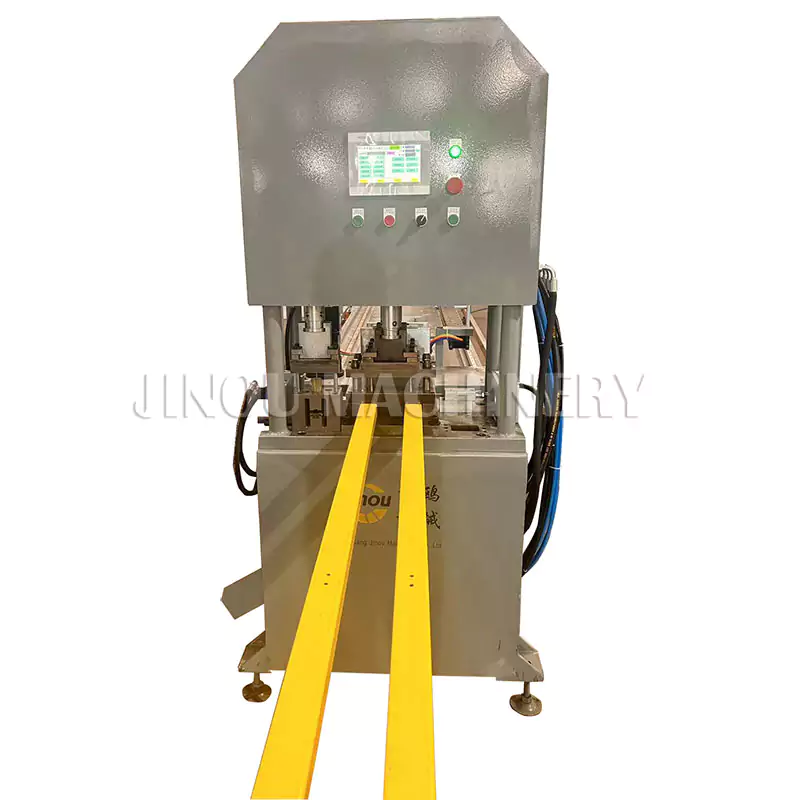

Name:CNC Stile Punching Machine for A shape Ladder
Functions :Punching the Left and Right Stiles in one time .
Mold :Accordong to Drawings
System Pressure:10Mpa
Efficiency:6s/cycle
Motor:3.75Kw
Max Length of profile :6000mm
Max Punching Stroke:20mm
Max Thickness:5mm
Power Input :380V/50HZ/3Phase
Machine size: 710x100x190cm
HS CODE: 8462490000

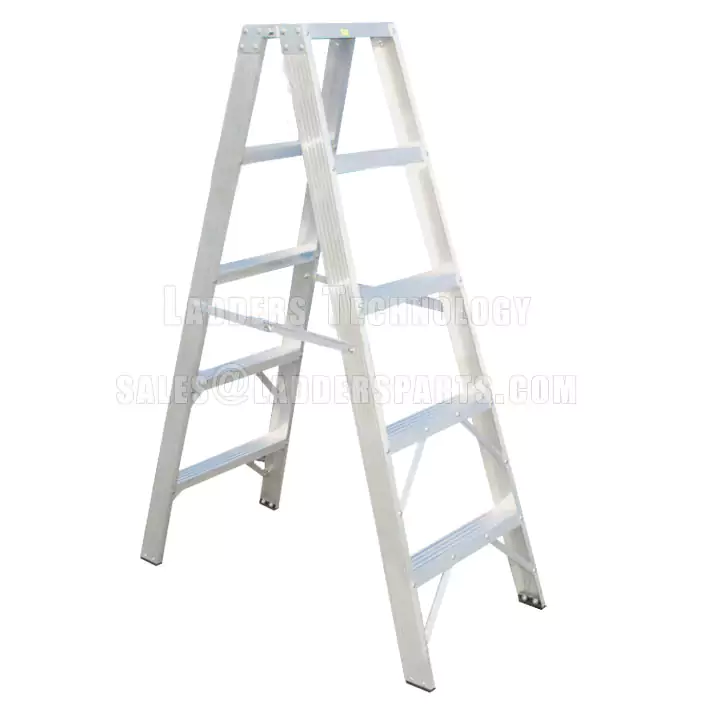

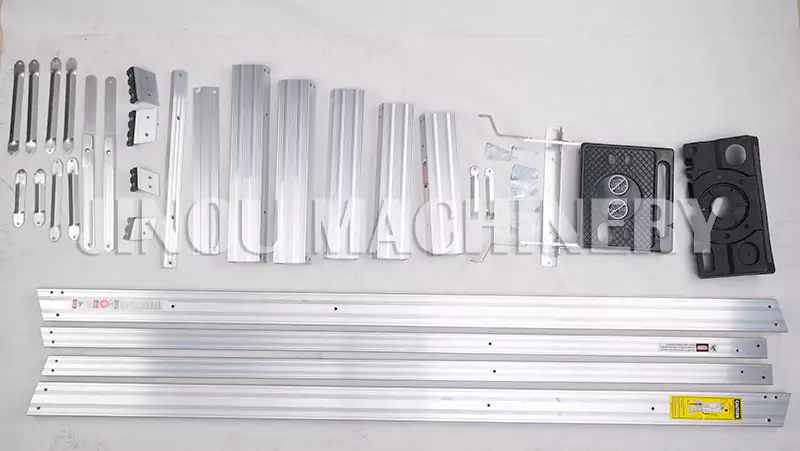

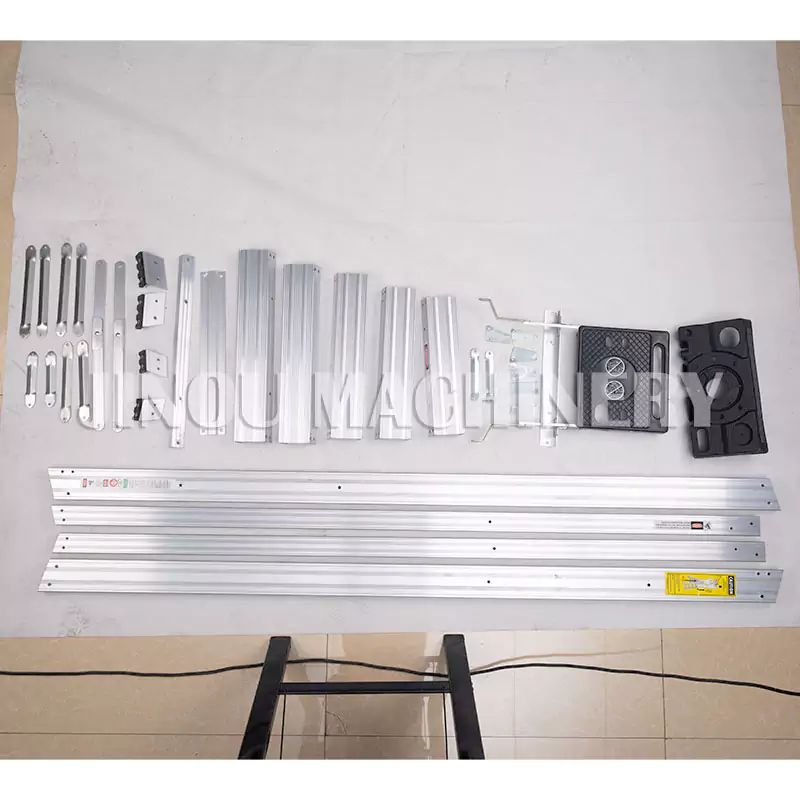

Finished Product Effect
