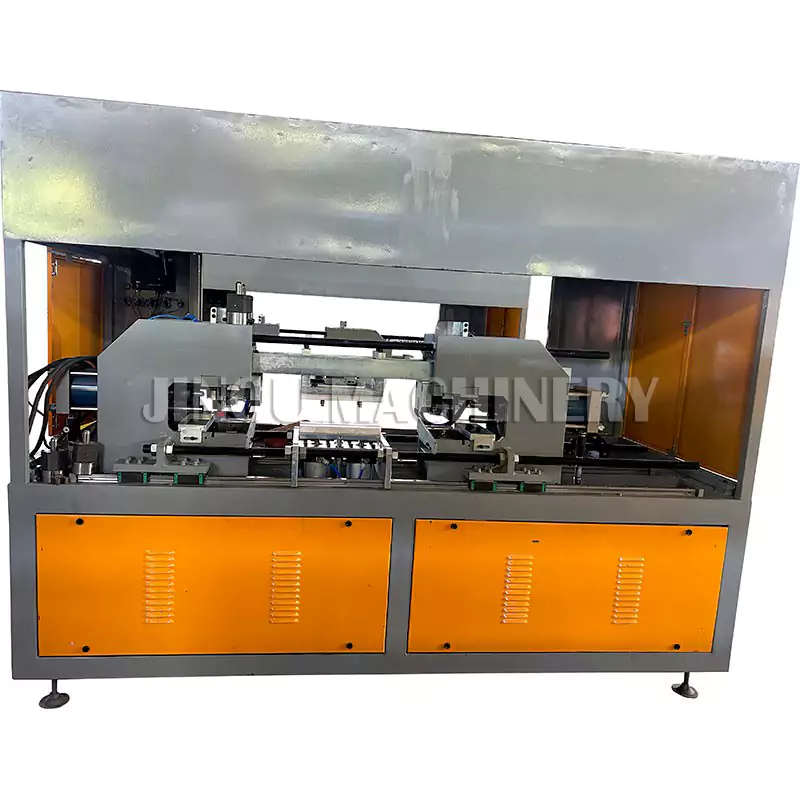

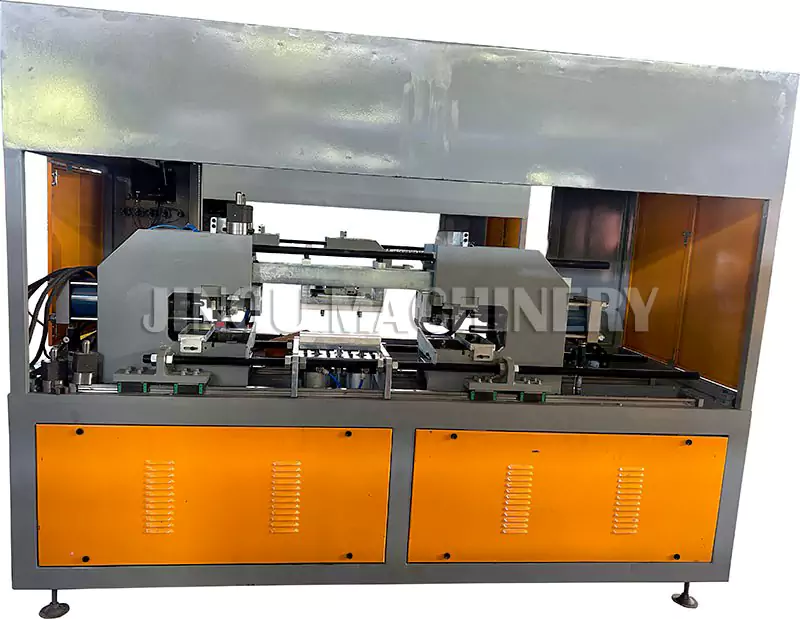

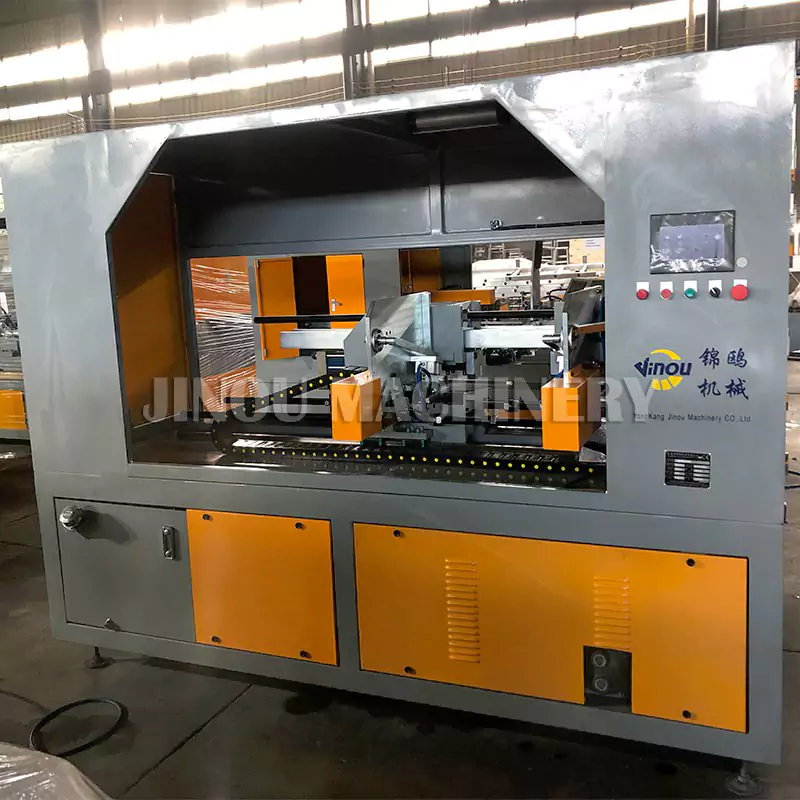

Tube Squeezing Machine for The Cable Ladder Channel Tray Ladder System
Ladder Making Machine : Automatic Tube Squeezing Machine
Mold:According to the square drawings.

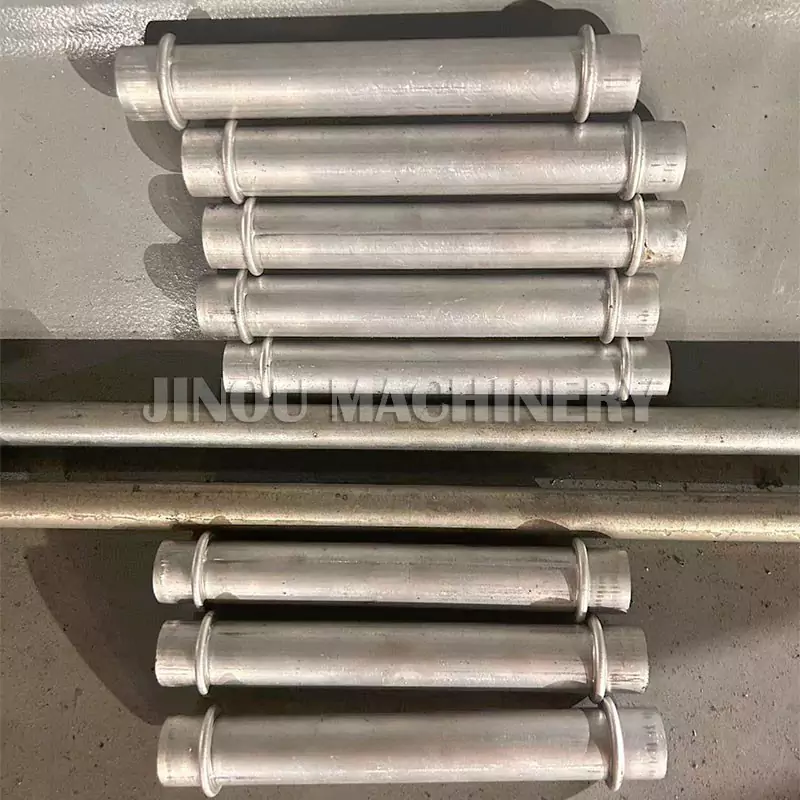

Processing: Sqeezing the Inner Side
Manual Put the material, Auto Feeding.
Fix Method: According to the bottom material
Production Efficiency :10s/rungs
Width Range:300-1250mm
Space Rungs:>280mm
Max Squeeizng Stroke:150mm
Pressure：14MPa
Oil Tank：300L
Motor: 7.5Kw
Measure：300*280*170（cm）
Net Weight：1750Kg
Air Put：0.6-0.8MPa
Voltage：380V/60HZ/3PH
NCM: 8463900090
