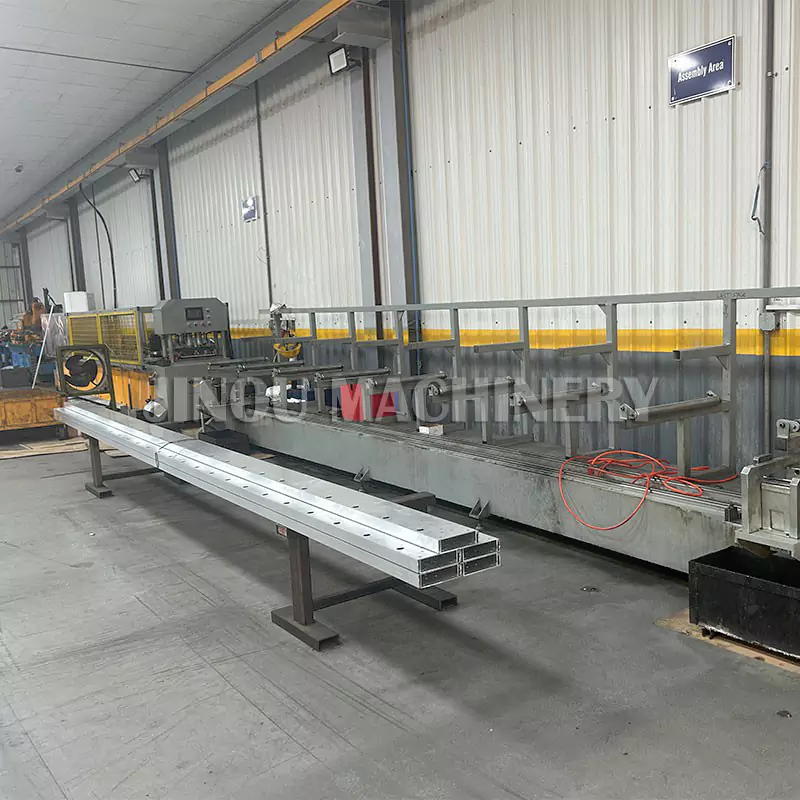

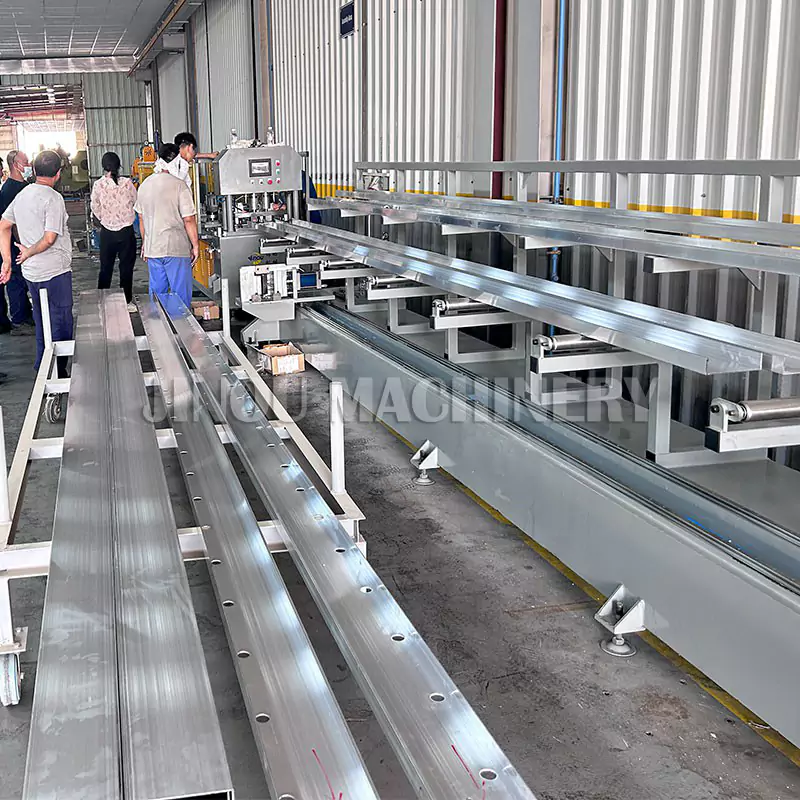

CNC Side Member Machine Punching Production Line for the Cable Ladder

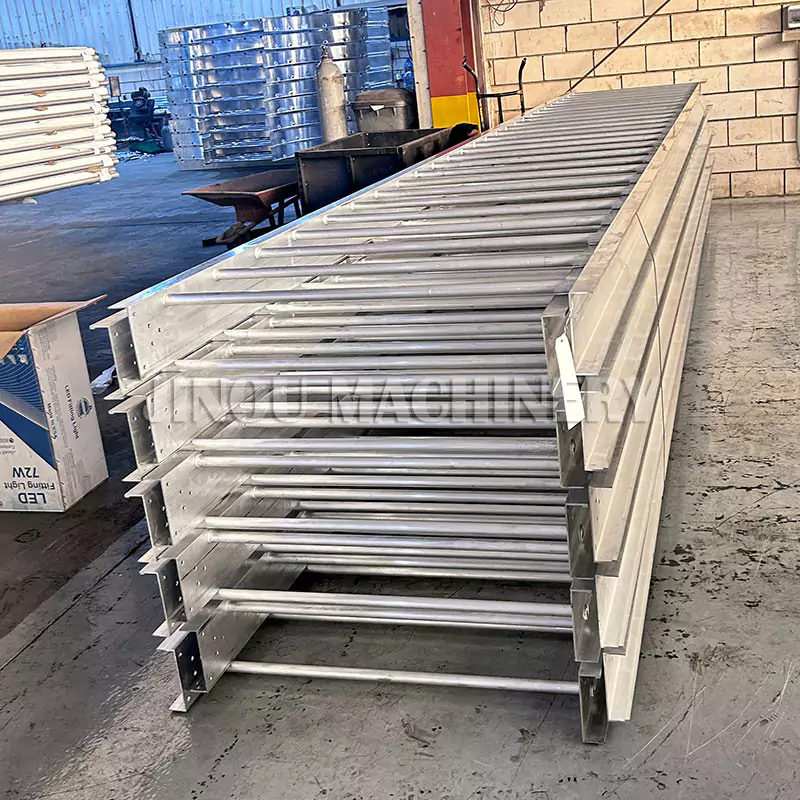

Cable Ladder Making Machine for the Cable Tray and Ladder Systems
Material: Aluminium
Method:Two Profiles in one time
Speed: 1 minutes for a 3meter Side member
Thickness: 1.5MM-2.0MM-2.6MM
Rungs Spacing :Can be adjustable in the program
Connector Hole:two different Size, need two different molds
Length of Member profile :from 1-6 meters
Machine Part 1 for the Holding the material and Hydraulic Punch the Connector Holes on both sides . with Two different molds
Part 1 Size: 6000x120x140mm
Machine Part 2 is the CNC Punching Machine,
For the Rungs Holes Punching, each time two profiles, Part 2 Size: 6700x120x160mm
Motor Power:
Air Pressure:0.6-0.8Mpa
