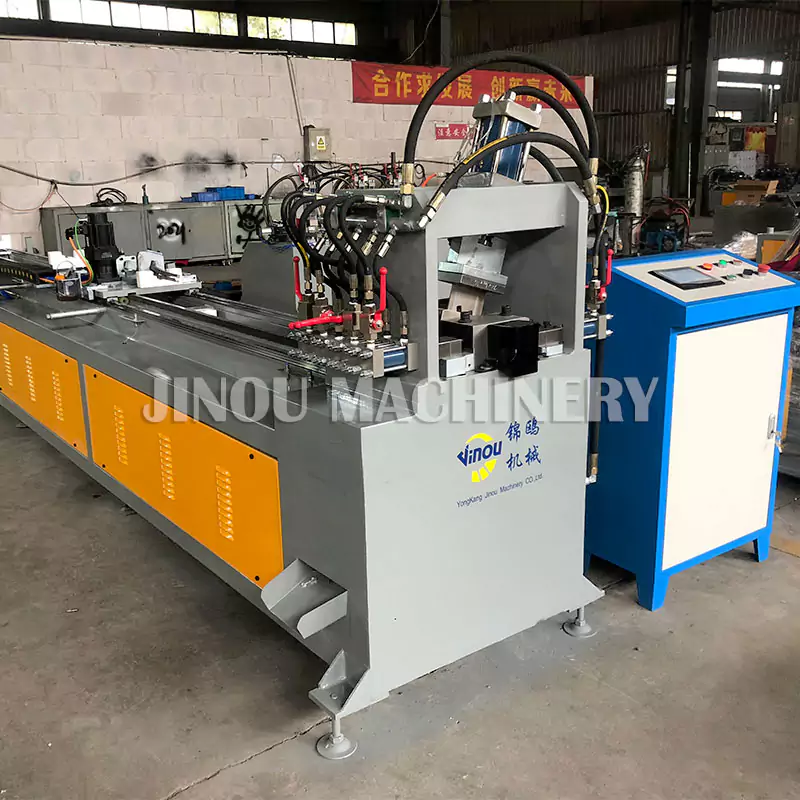

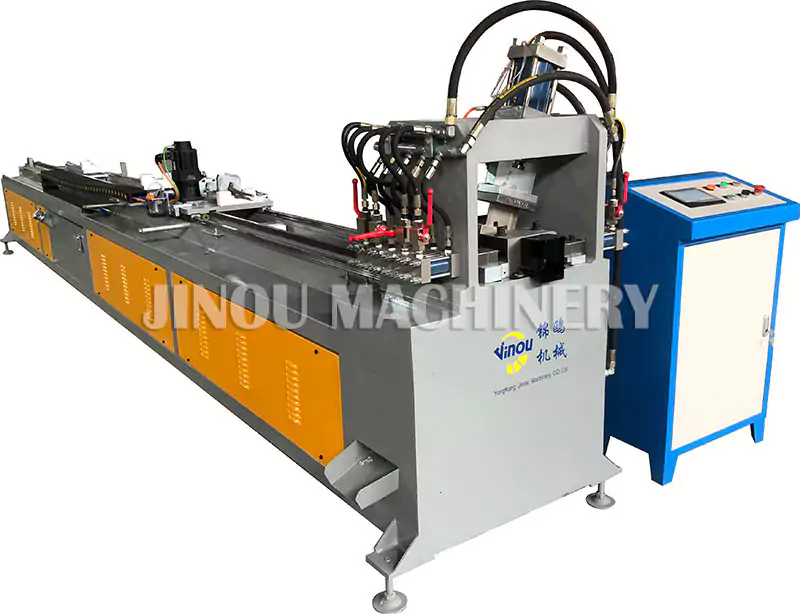

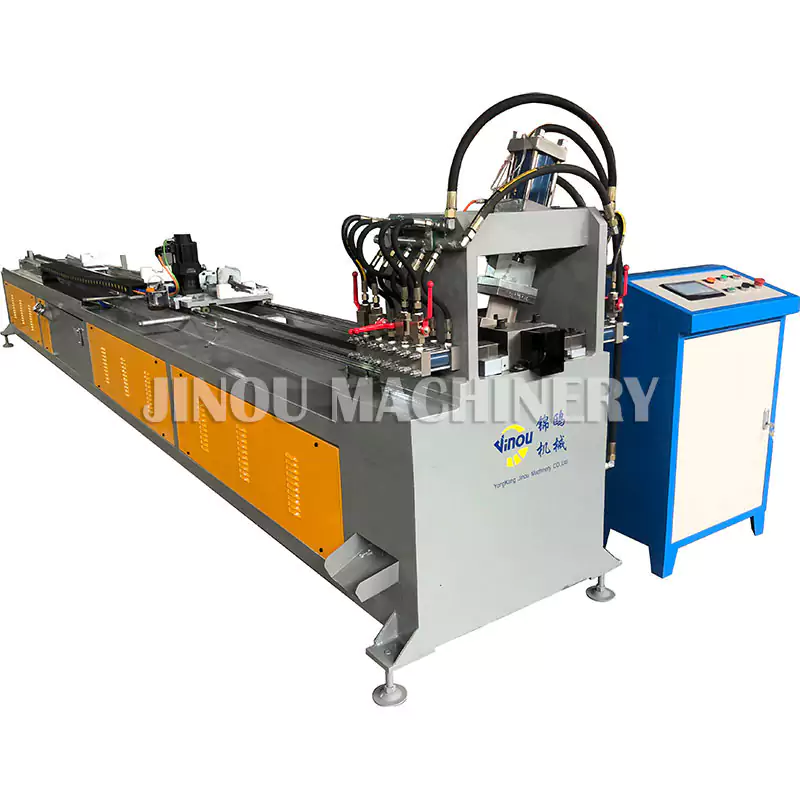

6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.

6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.
  • 6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.
  • 6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.
  • 6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.
  • 6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.
  • 6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.
  • 6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.
  • 6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.

6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.

Model No.:JOM-R002
System Pressure:10Mpa
Efficiency:6s/cycle
Motor:7.5Kw
Max Length of profile :6000mm
Max Punching Stroke:60mm
Max Thickness:2.0mm
Power Input : 415V/50HZ
Machine size: 710x100x170cm

DETAILED
6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.
Ladder Making Machinery
CNC Step Punching and Cutting Machine to Punch and Cut the Back Step  , Maximum the Steps Raw Material can be 6 Meters.
Name:Punching Machine
Type:CNC Step Punching Cutting Machine
Functions :Cuttting the profiles and Punch the step holes.
Model No.:JOM-R002
System Pressure:10Mpa
Efficiency:6s/cycle
Motor:7.5Kw
Max Length of profile :6000mm
Max Punching Stroke:60mm
Max Thickness:2.0mm
Power Input : 415V/50HZ
Machine size: 710x100x170cm
HS CODE: 8462490000

6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.

6 Meters CNC Punching and Cutting Machine for the A Type Dual Purpose Ladder, Aluminium and FRP Both Can Be Cut the Steps.
