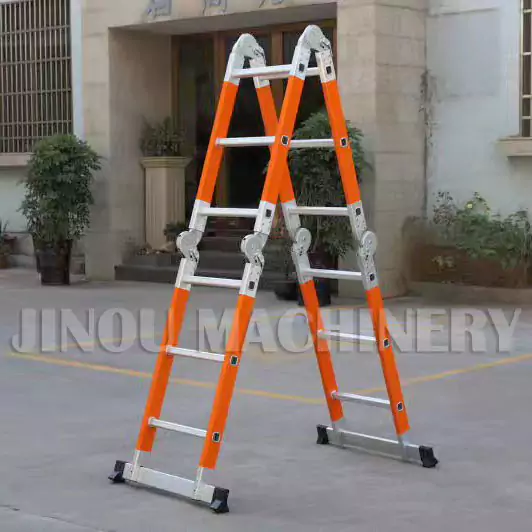

Aluminium Ladder Riveting Machine for the 4X3 Multi Purpose Ladder
Ladder Crimping Machine for the Aluminium Industrial 4X4 Ladder

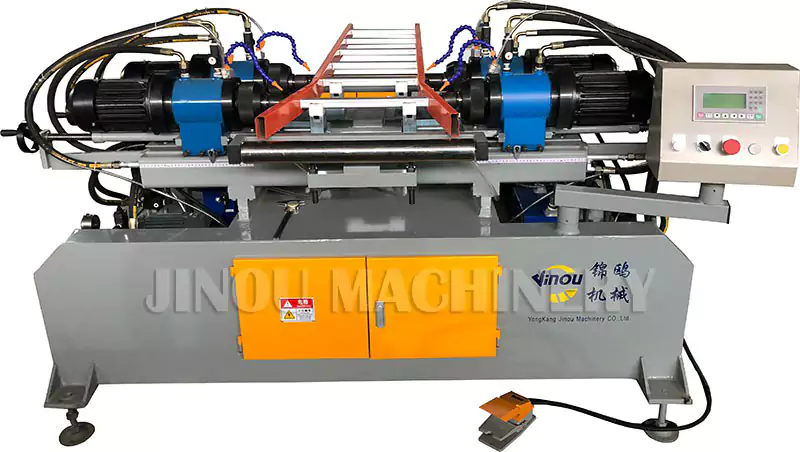

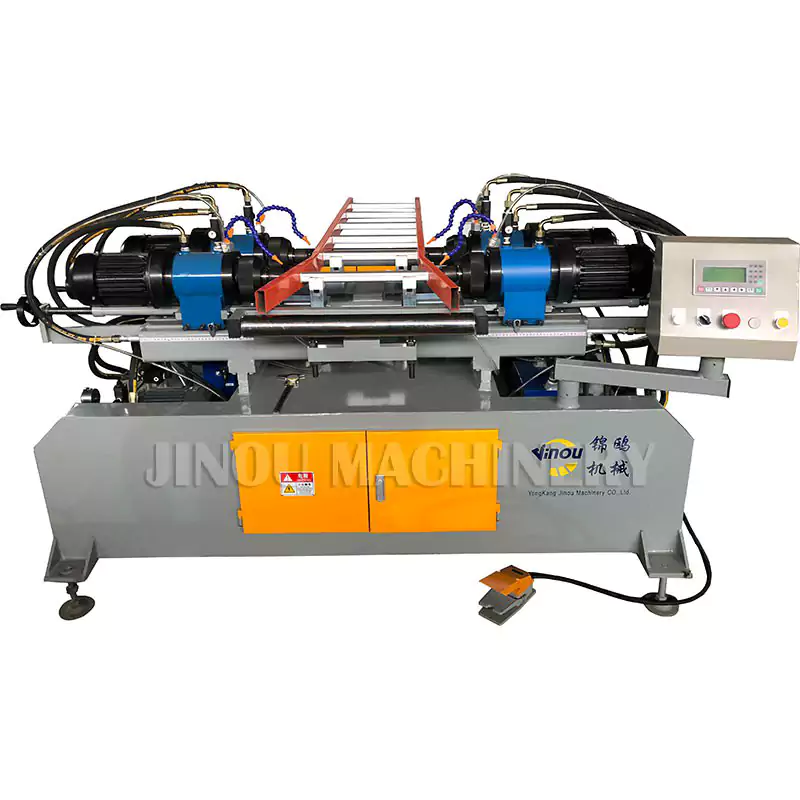

Name: Ladder Riveting Machine-Tube Expanding Machine
Type:  4 Heads Tube Expanding Machine
Model No.:JOM-D005B
Machine type : Hydraulic
Efficency :every cycle need 5Seconds
Power :7.5KW
Power Input : 380V/50HZ/3Phase
Head movement:150mmX4
Processing ladder width:350-600mm
Step Spacing:260-300mm
Processing ladder length: any size
G.W : 1400KGS
Measures : 210X145X145CM
HS CODE:8463900090
