CNC Punching Machine For The Multiply Ladder

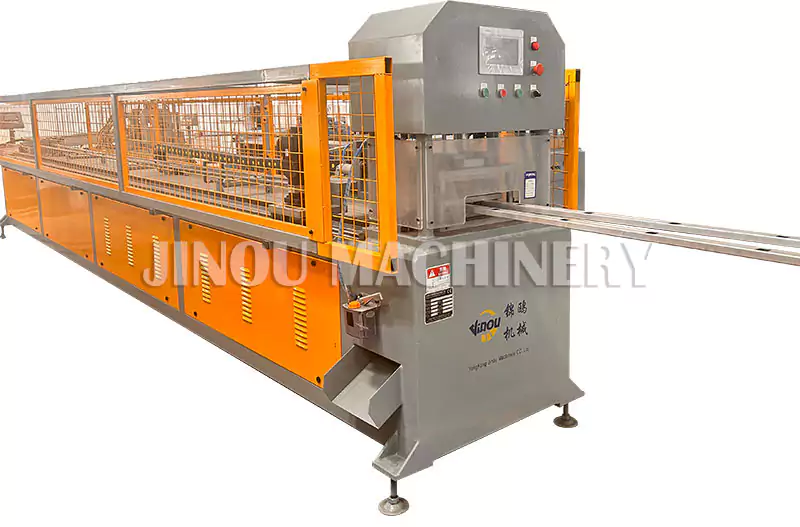

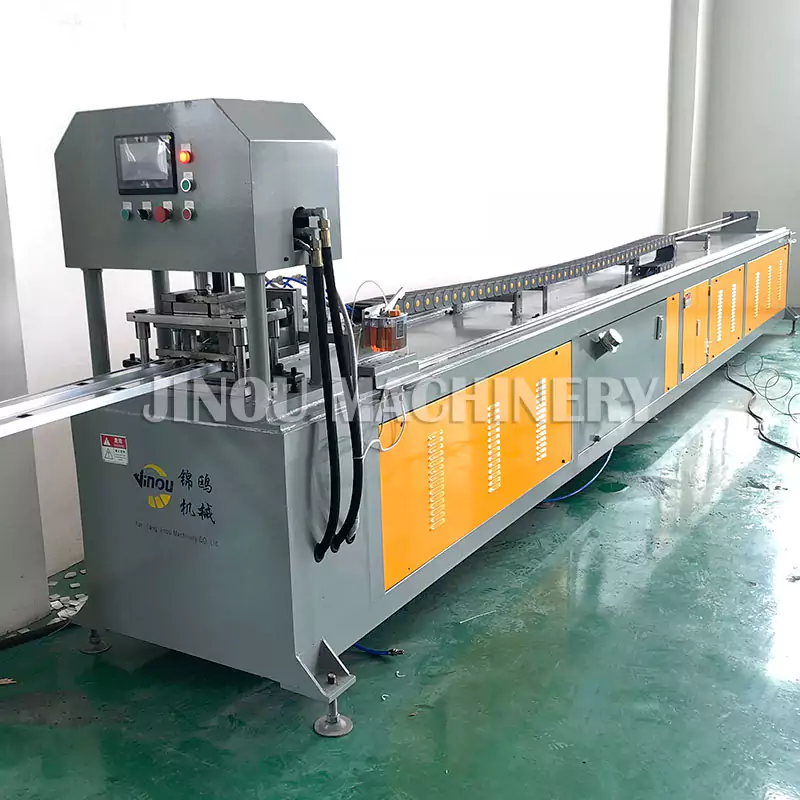

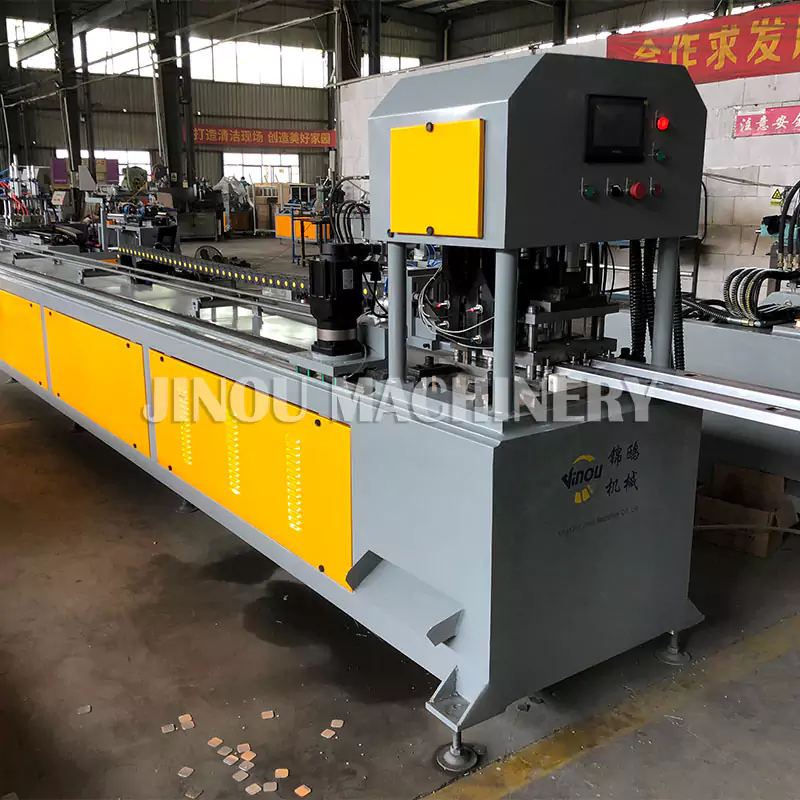

This is 6 METERS CNC Punching Machine for the Multi purpose aluminium ladders
This automatic machine allows to perform simultaneous punching operations on two ladder profiles.  After manual feeding of the two profiles, the operator adjusts the required profile size, the machine, Through the servo motor, collects the profiles and places in the punching position, this operation is performed with cycle time of 4 to 5 seconds between Holes (for a pitch of 280 mm).
Features:
- Fully automatic solution
- Punching through inner mandrel
- Easy matrix replacement for different hole formats

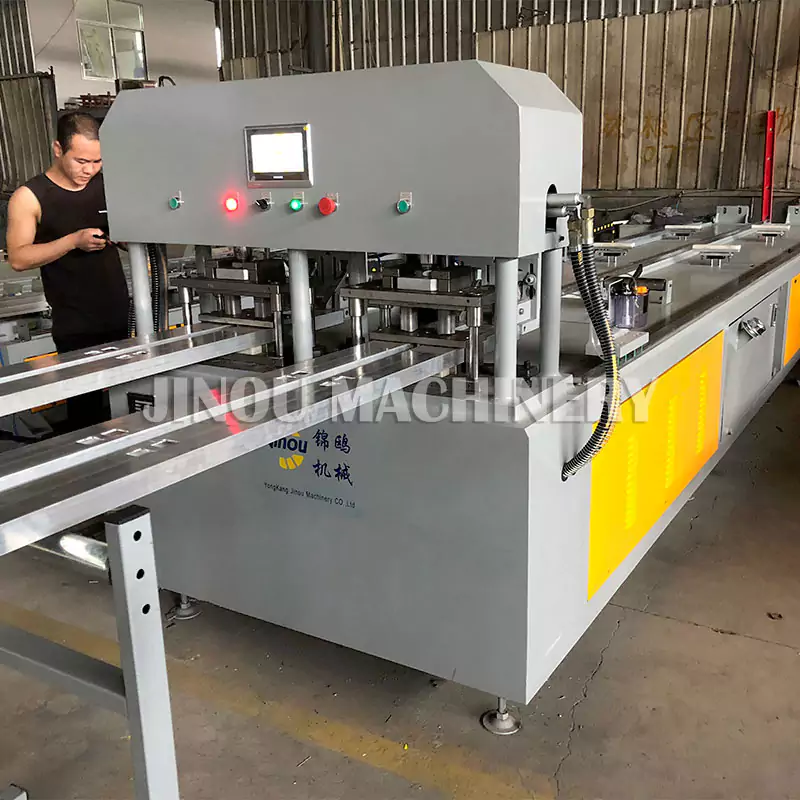

- Prepared to produce two profiles at the same time
- Displacement of the profiles controlled by a servomotor
- Possibility to adjust the pitch between holes
- Fully automatic solution
- Easy matrix replacement for different hole formats
- Prepared to produce two profiles at the same time
- Displacement of the profiles controlled by a servomotor
- Possibility to adjust the pitch between holes
- Length can be customized.
- Voltage can be customized.
- Rungs distance can be both regular distance and irregular distance .
- Machine can be with angle or punch without angle
- Inial holes can be changed .
- Rungs distance can be changed .
- Easy to set up the system .
- Easy to handle the machine .
- Easy to change the mold .
Technical data:
- Profile section (mm): According to Drawings
- Profile length: 1500 up to 6000mm
- Pitch between holes: Customized
- Cycle time: 4 to 5 seconds
- Power: 7,5 kW
- Voltage: 380V, 3 phase, 50 Hz
Name :6 meters  Automatic double work station CNC punching machine
different mold can make different holes.
Initial holes : minimum 100-125 mm
Machine type : Hydraulic
Efficency : 40holes / minutes
Control systme : PLC Control +Screen Touch
Power : 7.5KW
Power Input : 380V / 50HZ
G.W : 1850 kgs
Measures : 600x95x155 cm
