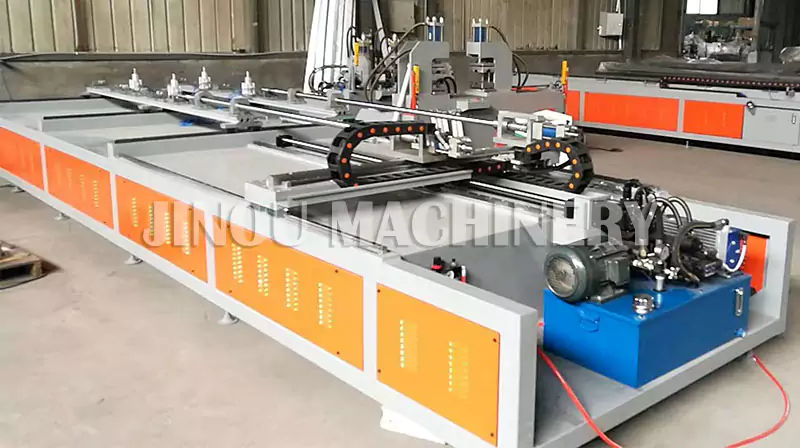

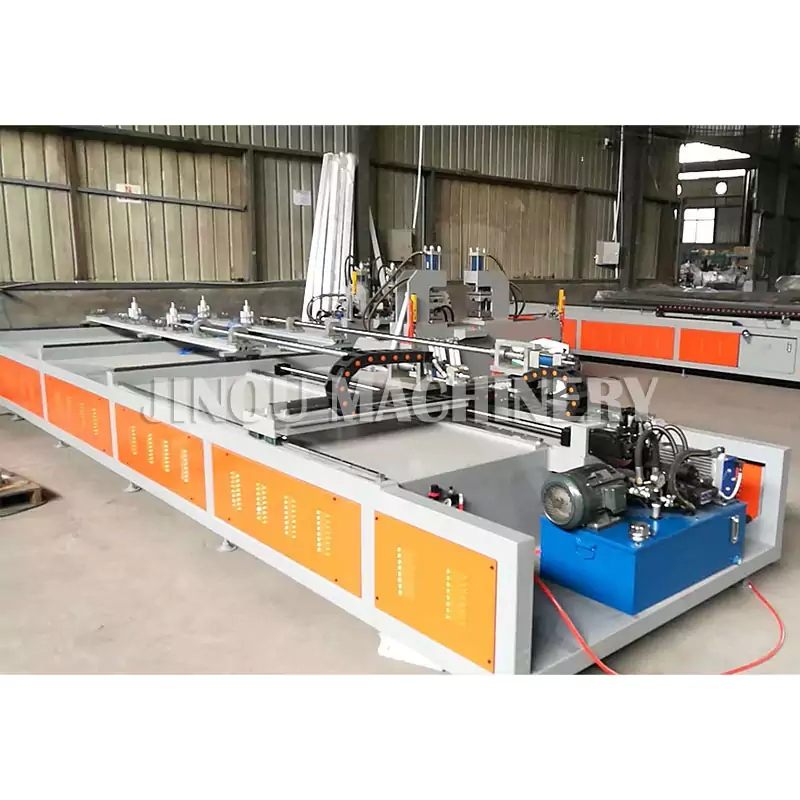

Expansion Machine for the Aluminium Scaffoldings
Name :Ladder Making Machine-Scaffolding Expanding Machine
Type:Scaffolding Expanding Machine
Model No.:JOM-D017
Manual Feeding, Manual Loading
Need Two person to operate the machine:
One feeding the rungs, one feeding the side profiels
Types of Frame:Round Pipes
Voltage :380v-440v/ 50HZ
Efficiency : 6s per pc
Motor Power: 7KW
Processing Width:600-1200mm
Rungs Distance:350-500mm
Max Steps:6Steps
Machine Size:6300*1800*950MM
HS CODE:8463900090
