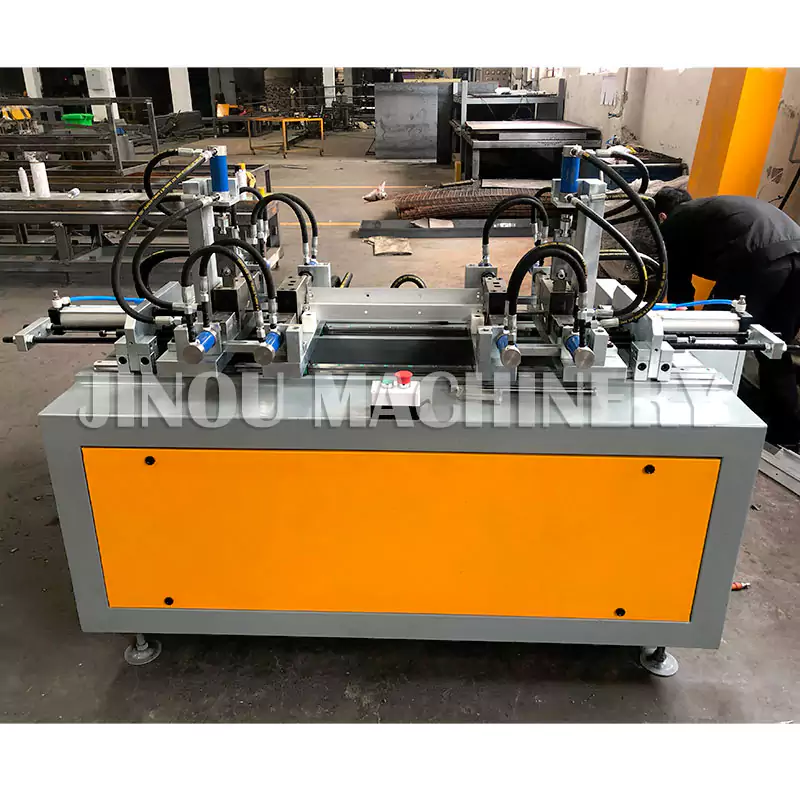

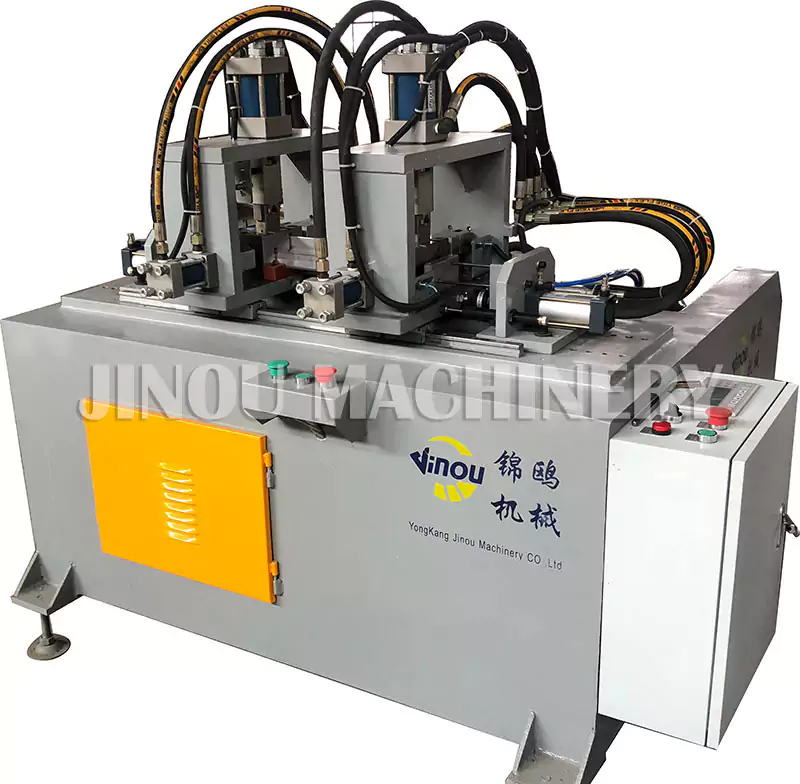

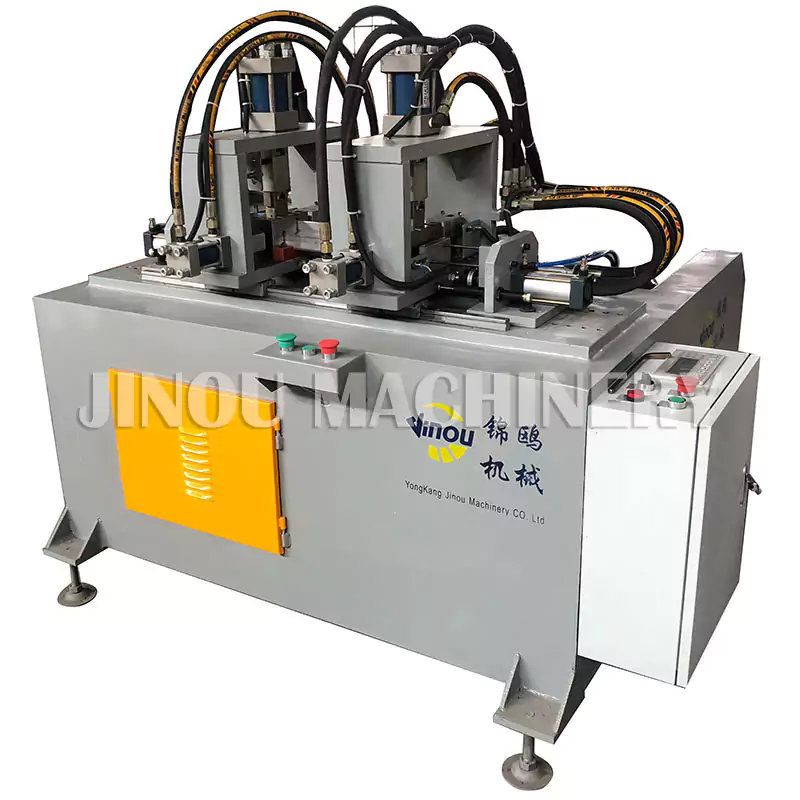

Dual Head Step Punching And Cutting Machine For The A Type Ladder For Both Alumimnium And Frp Steps.
First need to cut the steps from 6 meters long materials to be short pieces on the Aluminium cutting machine , then use that dual head step punching and cutting machine to cut the gap
And punch all the holes

Type:Step Punching and Cutting
Model No.:JOM-J004
Step length range :300-580mm
Efficiency :4s /work cycle
Pressure : Hydraulic
Oil tank : 90L
Oil Pump Max output pressure : 7MPa
Motor Power : 7.5Kw
Air Put : 0.5-0.8Mpa
Voltage 380V/50HZ/3P
N.T: 1500KGS
Machine size: 270x165x180cm
HS CODE:8462490000

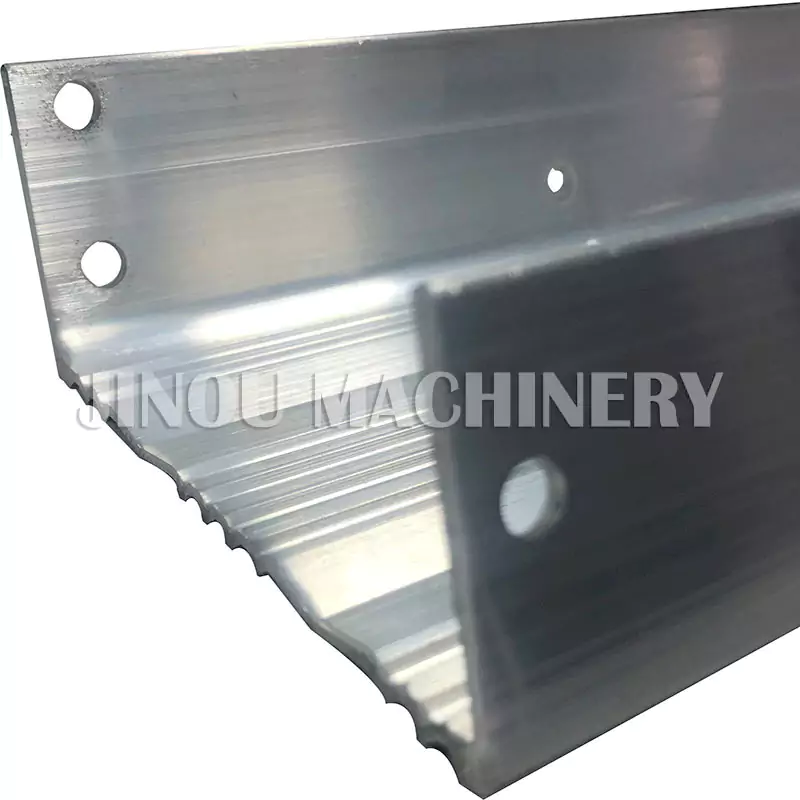

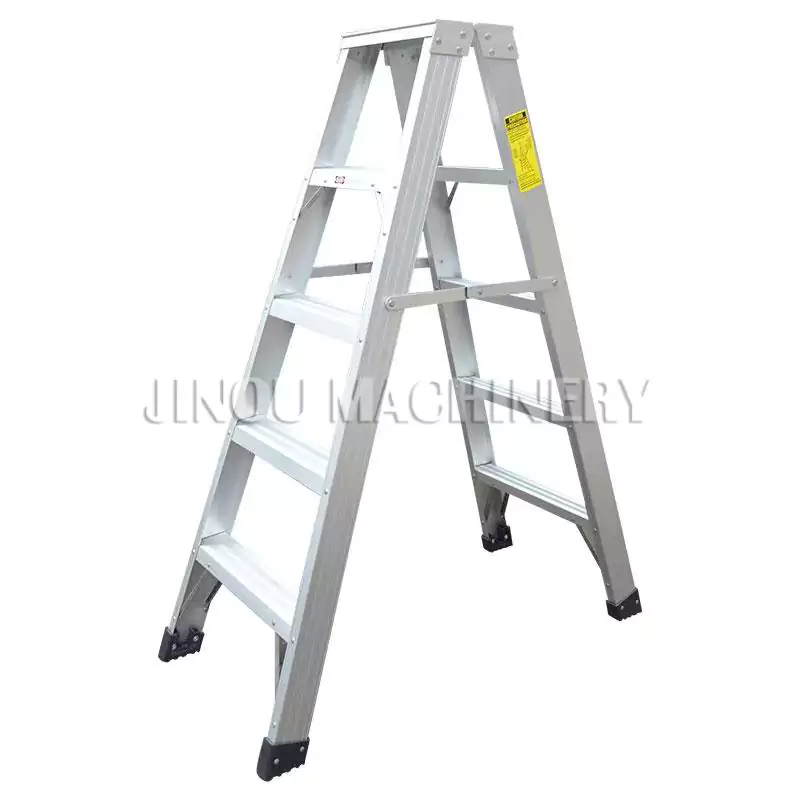

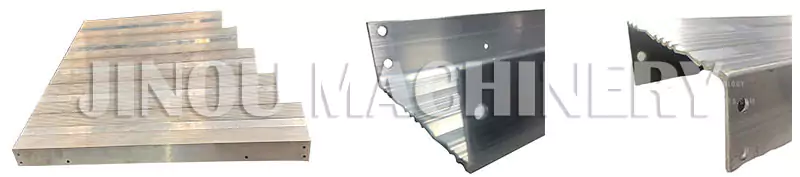

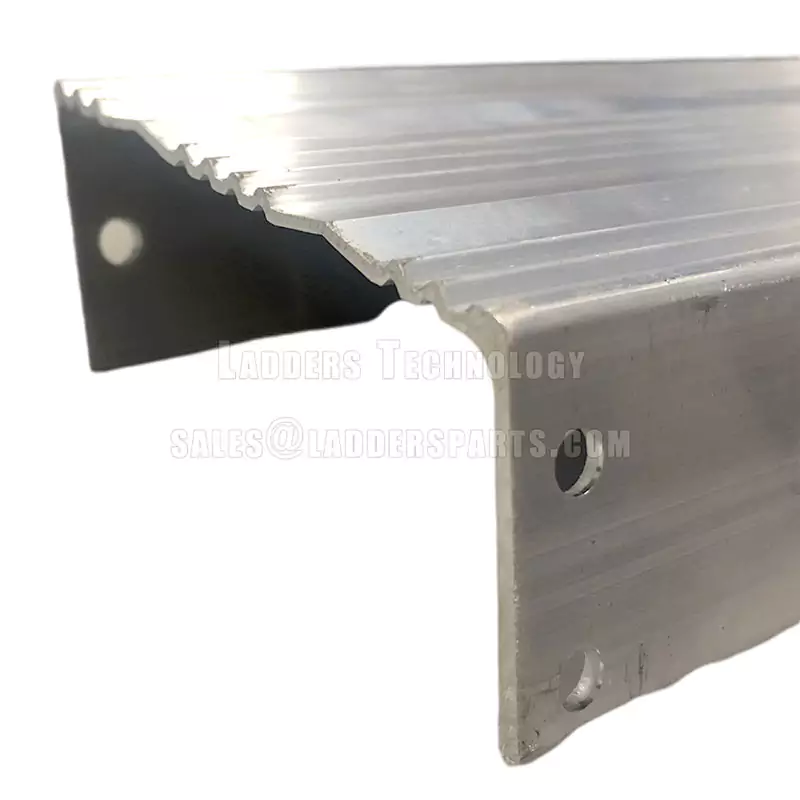

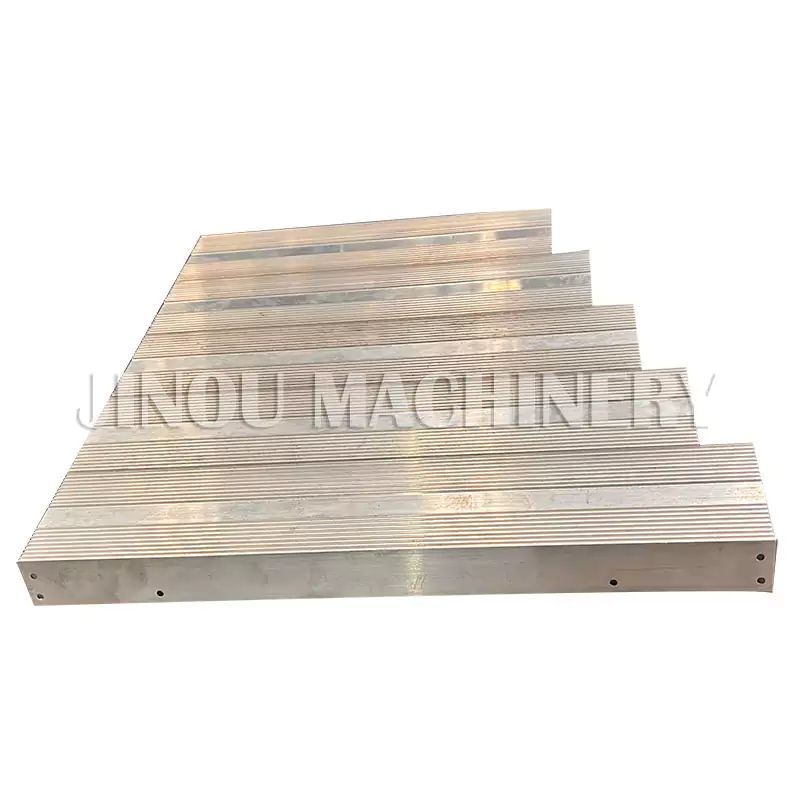

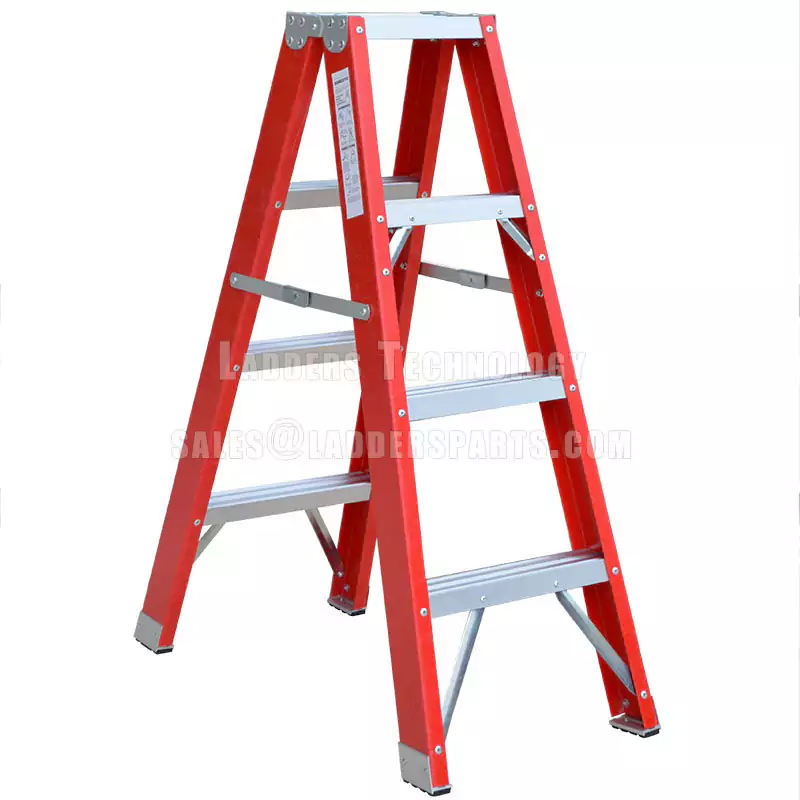

Finished Product Effect
