Punching Machine

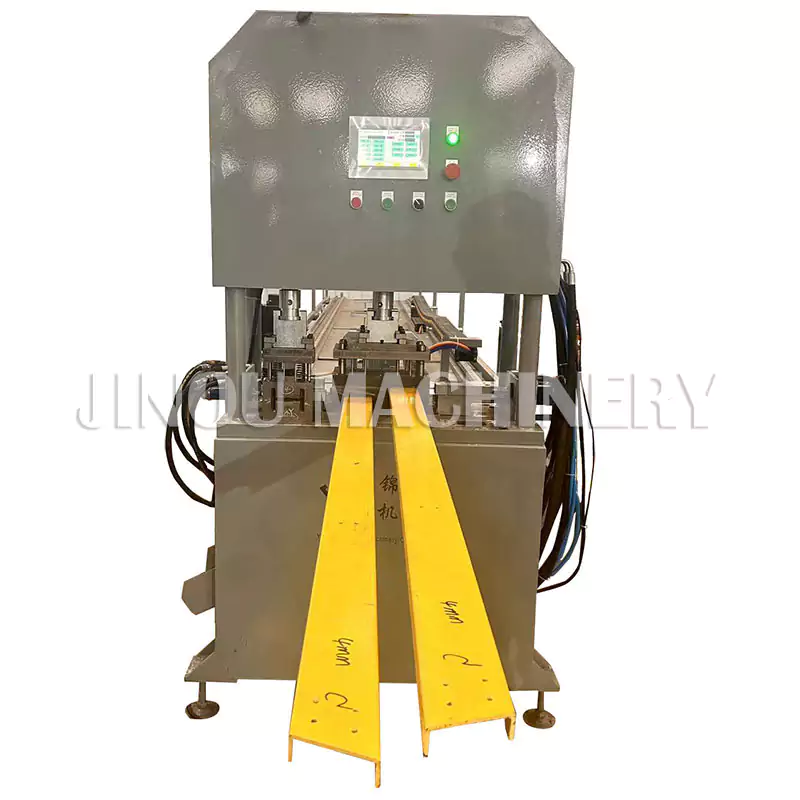

CNC Stile Punching Machine For A Type Ladder Front Rail JOM-R010A

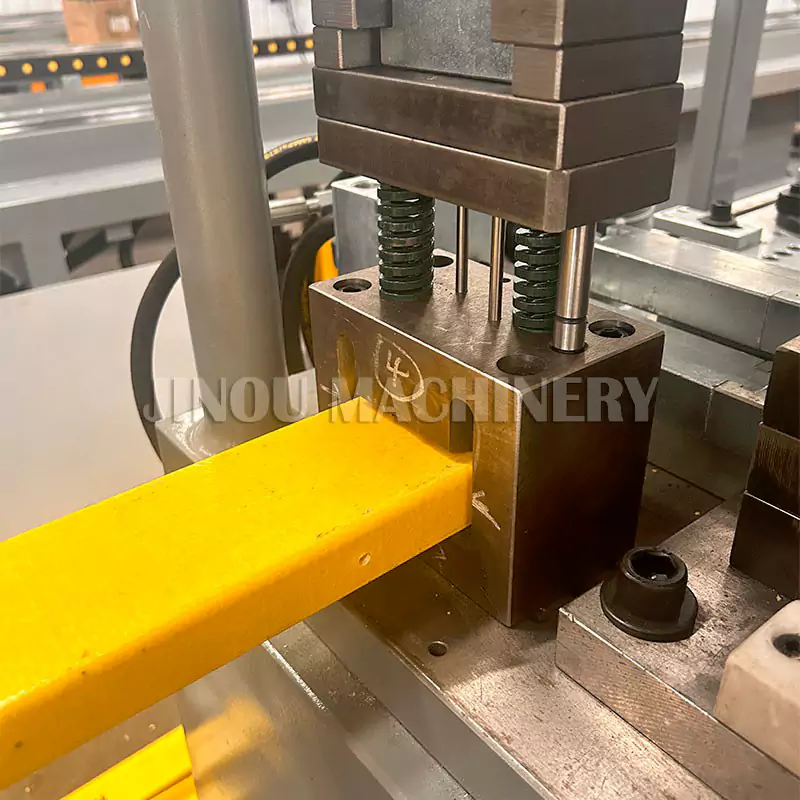

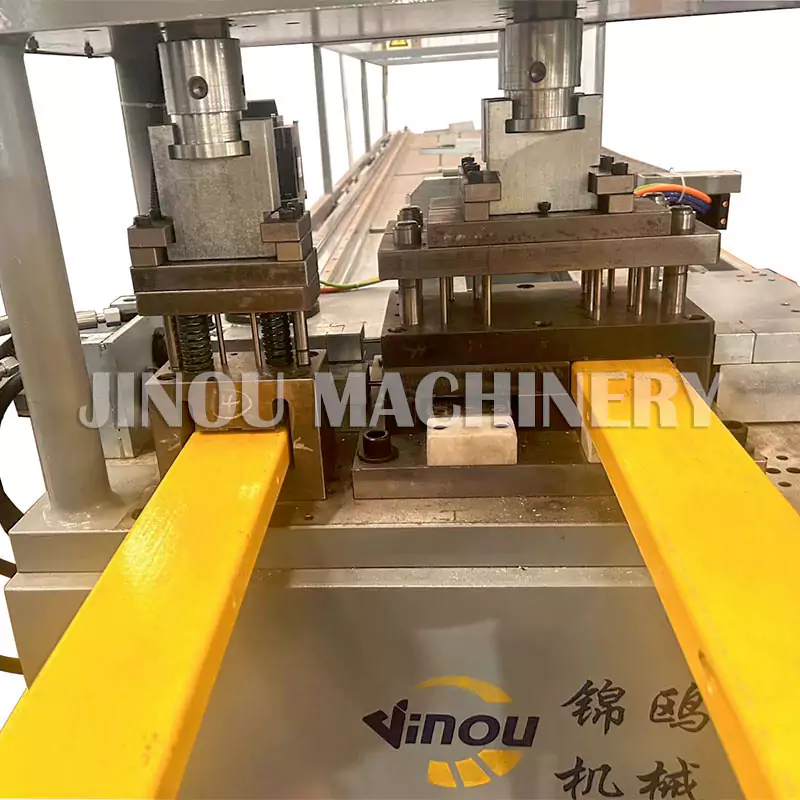

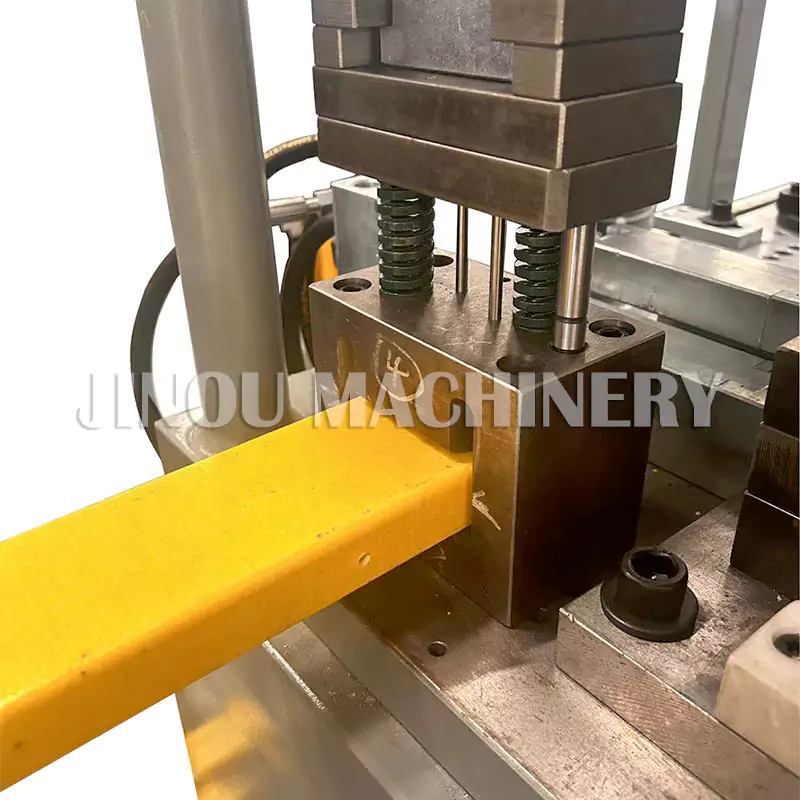

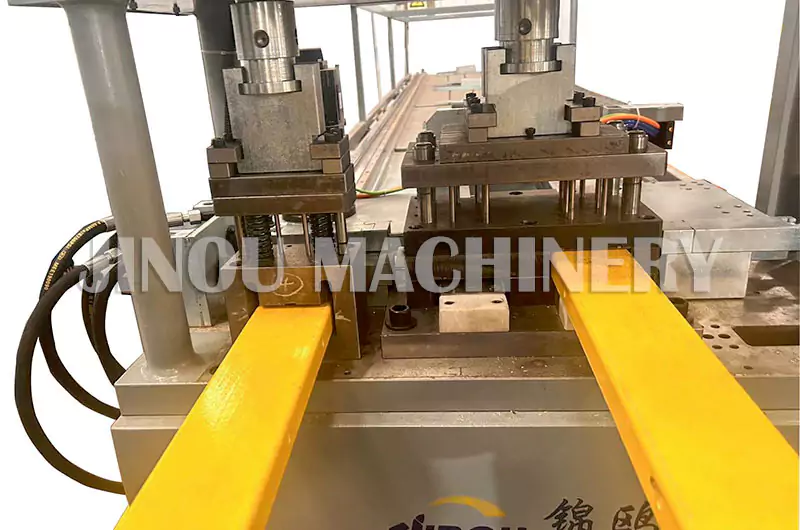

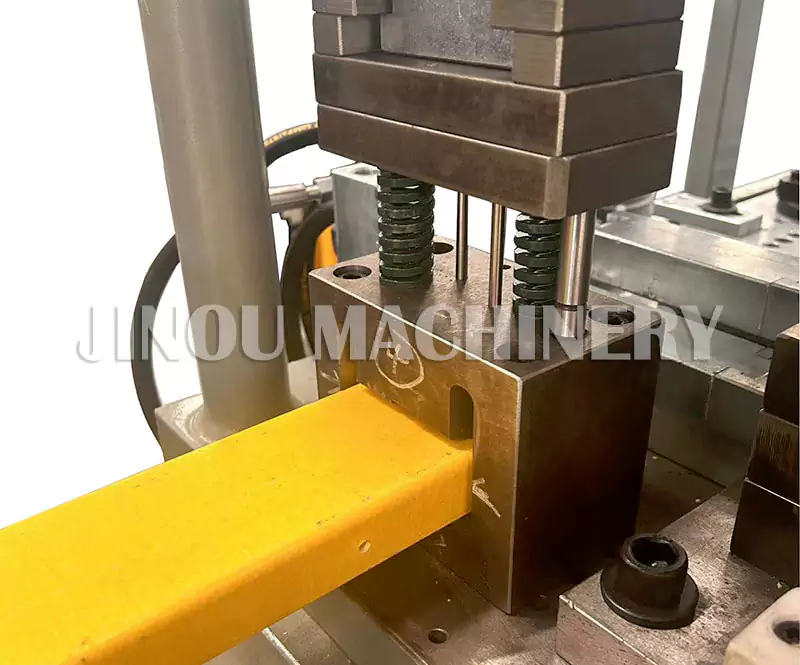

CNC Punch the Stiles Holes on Front Rail,and the Machine with Small Work Station, Can Punch the Aluminium and Punch the FRP by changing molds. Machine can make different length, Maximum can make 6 meters. Small Work Station can Punch All the Necessary Holes like Connection holes, Feet Holes.

Name:Punching Machine
Type:CNC Stile Punching  Machine for A shape Ladder
Model No:JOM-R010
Functions :Punching  All the holes:
System Pressure:10Mpa
Efficiency:6s/cycle
Motor:3.75Kw
Max Length of profile :6000mm
Max Punching Stroke:20mm
Max Thickness:2.5mm
Power Input : 380V/50HZ
Machine size: 710x100x190cm
HS CODE: 8462490000
